• Part: SSD1289
  • Description: 240 RGB x 320 TFT LCD Controller Driver
  • Manufacturer: Solomon Systech
  • Size: 591.34 KB
Download SSD1289 Datasheet PDF

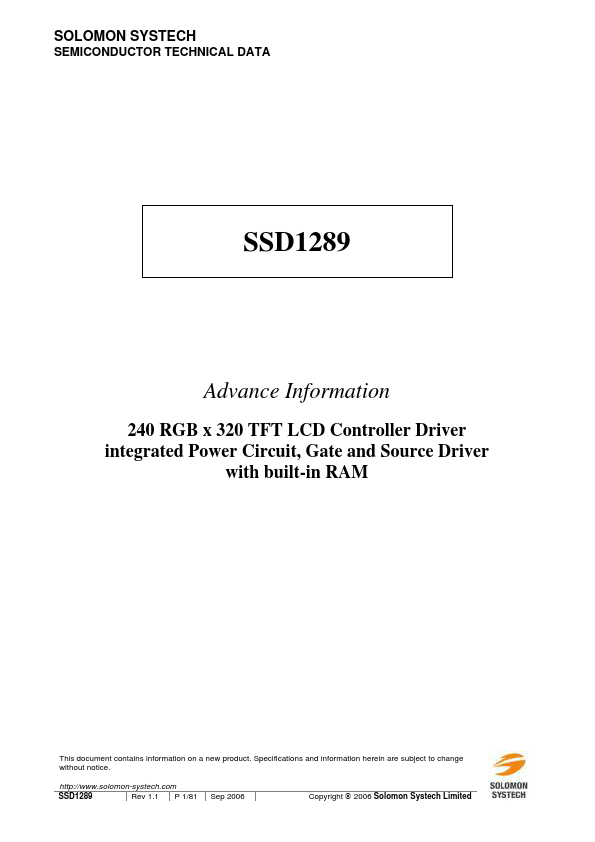

SSD1289 datasheet preview

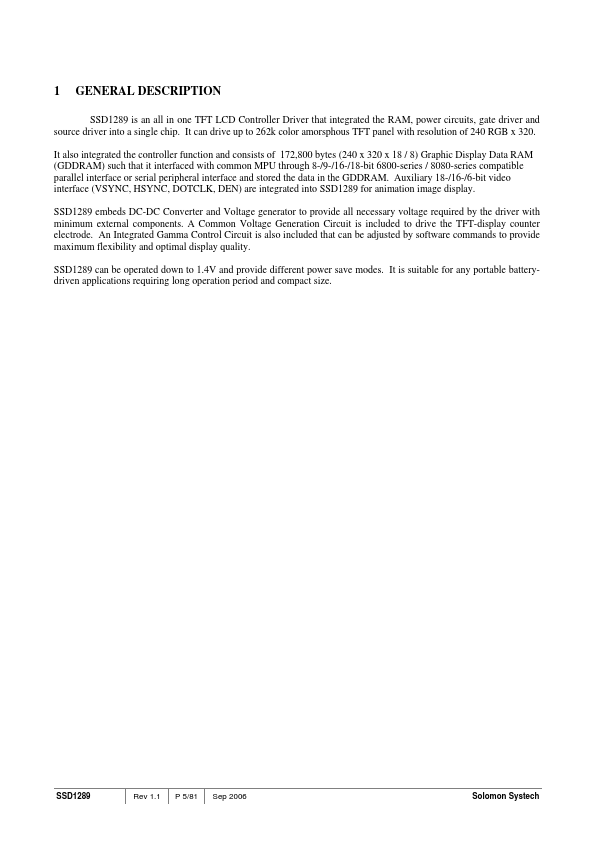

SSD1289 page 2
Page 2

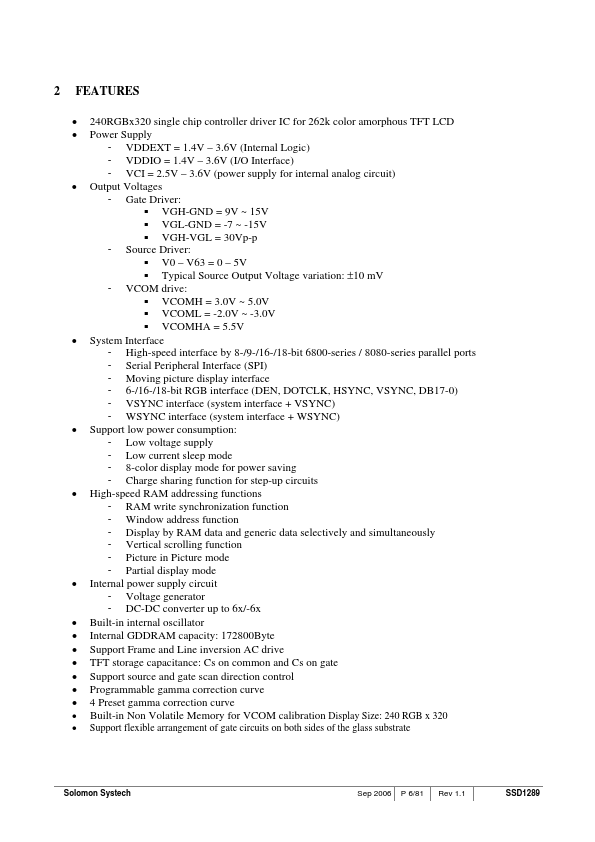

SSD1289 page 3
Page 3

SSD1289 Key Features

  • 240RGBx320 single chip controller driver IC for 262k color amorphous TFT LCD
  • Power Supply
  • VDDEXT = 1.4V
  • 3.6V (Internal Logic)
  • VDDIO = 1.4V
  • 3.6V (I/O Interface)
  • VCI = 2.5V
  • 3.6V (power supply for internal analog circuit)
  • Output Voltages
  • Gate Driver
