SSD1619A
SSD1619A is Active Matrix EPD Display Driver manufactured by Solomon Systech.

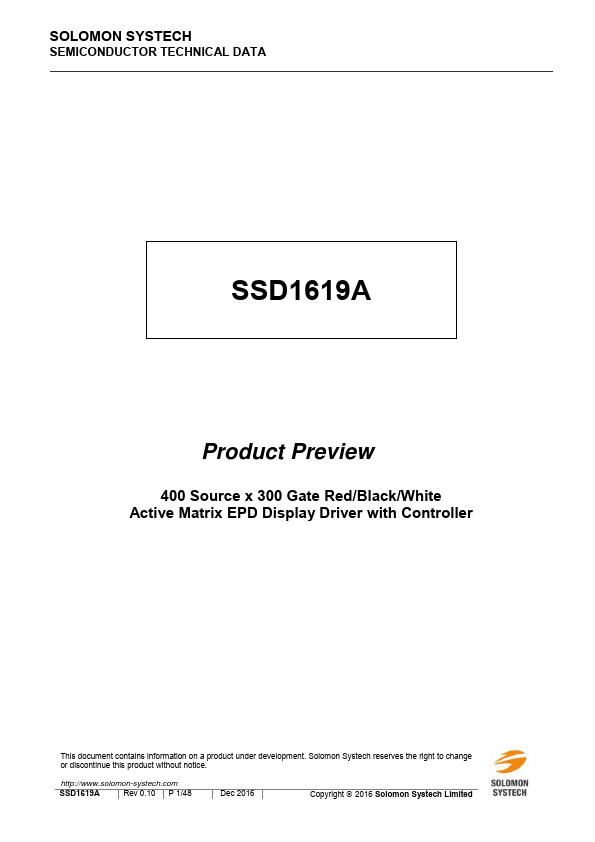

SOLOMON SYSTECH
SEMICONDUCTOR TECHNICAL DATA
Product Preview
400 Source x 300 Gate Red/Black/White Active Matrix EPD Display Driver with Controller
This document contains information on a product under development. Solomon Systech reserves the right to change or discontinue this product without notice. http://.solomon-systech.
Rev 0.10 P 1/48
Dec 2016
Copyright 2016 Solomon Systech Limited

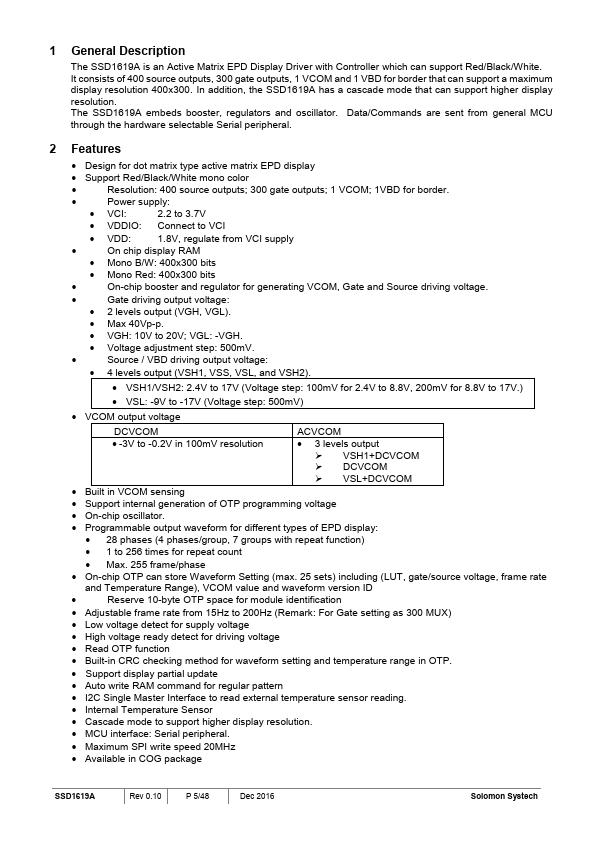

1 General Description
The SSD1619A is an Active Matrix EPD Display Driver with Controller which can support Red/Black/White. It consists of 400 source outputs, 300 gate outputs, 1 V and 1 VBD for border that can support a maximum display resolution 400x300. In addition, the SSD1619A has a cascade mode that can support higher display resolution. The SSD1619A embeds booster, regulators and oscillator. Data/mands are sent from general MCU through the hardware selectable Serial peripheral.
2 Features
- Design for dot matrix type active matrix EPD display
- Support Red/Black/White mono color
- Resolution: 400 source outputs; 300 gate outputs; 1 V; 1VBD for border.
- Power supply:
- VCI:
2.2 to 3.7V
- VDDIO: Connect to VCI
- VDD:
1.8V, regulate from VCI supply
- On chip display RAM
- Mono B/W: 400x300 bits
- Mono Red: 400x300 bits
- On-chip booster and regulator for generating V, Gate and Source driving voltage.
- Gate driving output voltage:
- 2 levels output (VGH, VGL).
- Max 40Vp-p.
- VGH: 10V to 20V; VGL: -VGH.
- Voltage adjustment step: 500m V.
- Source / VBD driving output...
