SSD1681 - Active Matrix EPD Display Driver

Datasheet Summary

Description

5 2

Features

  • 5 3.

📥 Download Datasheet

Datasheet preview – SSD1681

Datasheet Details

Part number SSD1681
Manufacturer Solomon Systech
File Size 533.24 KB
Description Active Matrix EPD Display Driver
Datasheet download datasheet SSD1681 Datasheet
Additional preview pages of the SSD1681 datasheet.

📁 Similar Datasheet

  • SSD1623 - LED B/L Ultra-Wide LCD (LITEMAX)
  • SSD103 - Surface-mount Power Transistor (ETC)
  • SSD1030P - P-Channel Enhancement Mode MOSFET (South Sea Semiconductor)
  • SSD10N10J-C - N-Ch Enhancement Mode Power MOSFET (SeCoS)
  • SSD125N03S-C - N-Channel Fast Switching MOSFET (SeCoS)
  • SSD12P10 - P-Channel Enhancement Mode Power MosFET (SeCoS)
  • SSD12P10-C - P-Ch Enhancement Mode Power MOSFET (SeCoS)
  • SSD1303 - 132 x 64 Dot Matrix OLED/PLED Segment/Common Driver (Solomon)
  • SSD1327 - OLED/PLED Segment/Common Driver (Solomon)
  • SSD1332 - OLED/PLED Segment/Common Driver (Solomon)
Other Datasheets by Solomon Systech
  • SSD1680 - Active Matrix EPD Display Driver
  • SSD1603 - 132 x 64 Bistable Display Driver
  • SSD1608 - Active Matrix EPD 240 x 320 Display Driver
  • SSD1619A - Active Matrix EPD Display Driver
  • SSD1623 - 96 Segments with Common 3-Level Generic Display Driver CMOS
  • SSD1675A - Active Matrix EPD Display Driver
  • SSD1030 - Boost Regulating White LED drivers
  • SSD1283A - TFT Driver

Full PDF Text Transcription

Click to expand full text

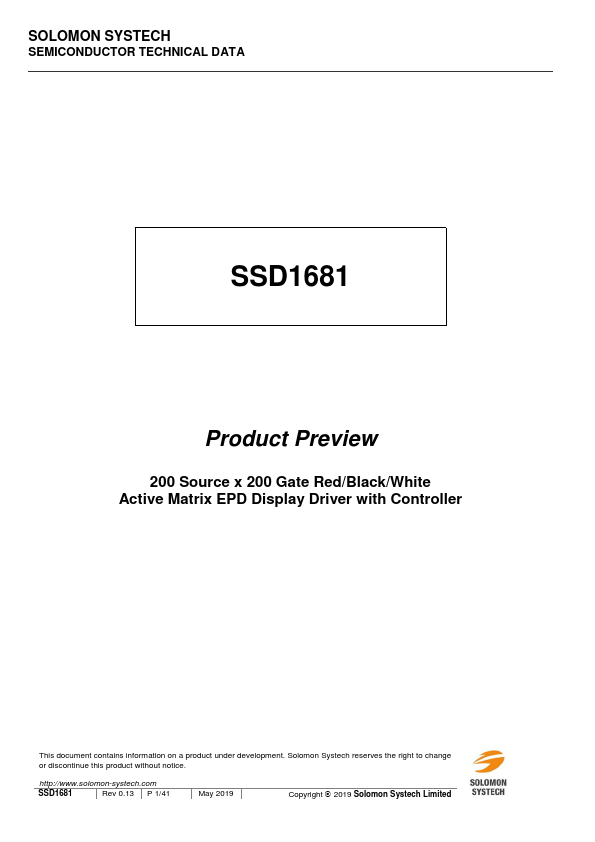

SOLOMON SYSTECH SEMICONDUCTOR TECHNICAL DATA SSD1681 Product Preview 200 Source x 200 Gate Red/Black/White Active Matrix EPD Display Driver with Controller This document contains information on a product under development. Solomon Systech reserves the right to change or discontinue this product without notice. http://www.solomon-systech.com SSD1681 Rev 0.13 P 1/41 May 2019 Copyright  2019 Solomon Systech Limited Appendix: IC Revision history of SSD1681 Specification Version 0.10 0.11 0.12 0.13 Change Items Initial Release Revised component table and remarks Revised component table, added 0402 and criteria for resistor R1 Revised component table Effective Date 09-May-19 24-May-19 28-May-19 05-Jun-19 SSD1681 Rev 0.
