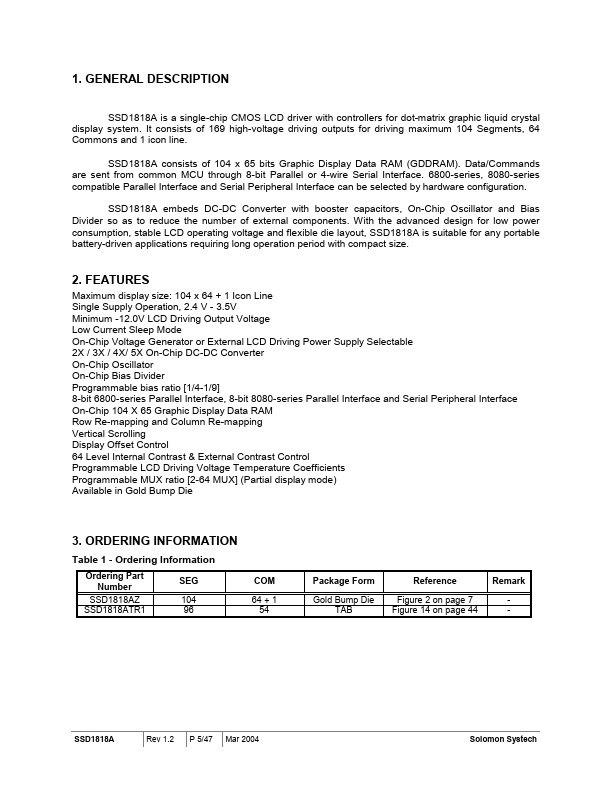

DESCRIPTION SSD1818A is a single-chip CMOS LCD driver with controllers for dot-matrix graphic liquid crystal display system. It consists of 169 high-voltage driving outputs for driving maximum 104 Segments, 64 mons and 1 icon line. SSD1818A consists of 104 x 65 bits Graphic Display Data RAM (GDDRAM). Data/mands are sent from mon MCU through 8-bit Parallel or 4-wire Serial Interface. 6800-series, 8080-series patible Parallel Interface and Serial Peripheral Interface can be selected by hardware configuration. SSD1818A embeds DC-DC Converter with booster capacitors, On-Chip Oscillator and Bias Divider so as to reduce the number of external ponents. With the advanced design for low power consumption, stable LCD operating voltage and flexible die layout, SSD1818A is suitable for any portable battery-driven applications requiring long operation period with pact size. 2. FEATURES Maximum display size: 104 x 64 + 1 Icon Line Single Supply Operation, 2.4 V - 3.5V Minimum -12.0V LCD Driving Output Voltage Low Current Sleep Mode On-Chip Voltage Generator or External LCD Driving Power Supply Selectable 2X / 3X / 4X/ 5X On-Chip DC-DC Converter On-Chip Oscillator On-Chip Bias Divider Programmable bias ratio [1/4-1/9] 8-bit 6800-series Parallel Interface, 8-bit 8080-series Parallel Interface and Serial Peripheral Interface On-Chip 104 X 65 Graphic Display Data RAM Row Re-mapping and Column Re-mapping Vertical Scrolling Display Offset Control 64 Level Internal Contrast & External Contrast Control Programmable LCD Driving Voltage Temperature Coefficients Programmable MUX ratio [2-64 MUX] (Partial display mode) Available in Gold Bump Die 3. ORDERING INFORMATION Table 1 - Ordering Information Ordering Part Number SSD1818AZ SSD1818ATR1 104 96 64 + 1 54 Package Form Gold Bump Die TAB Reference Figure 2 on page 7 Figure 14 on page 44 Remark - SSD1818A Rev 1.2 P 5/47 Mar 2004 Solomon Systech 4. BLOCK DIAGRAM ICONS ROW0 ~ ROW63 SEG0 ~SEG103 MSTAT M DOF M/S CL CLS V...
