Solomon SSD1360
SSD1360 is a single-chip CMOS OLED/PLED driver with controller for organic/polymer light emitting diode dot-matrix graphic display. It consists of 120 segments and 17 commons while it can display 1, or 2, lines with 5x8 or 6x8 dots format. It also consists of 32 icon segments and 4 icon commons.| Part No. | SSD1360 |
|---|---|
| Datasheet | SSD1360 Download |
| Manufacturer |  Solomon |
| Description | OLED/PLED Segment/Common Driver |
| Buy | Stock & Price |
GENERAL DESCRIPTION

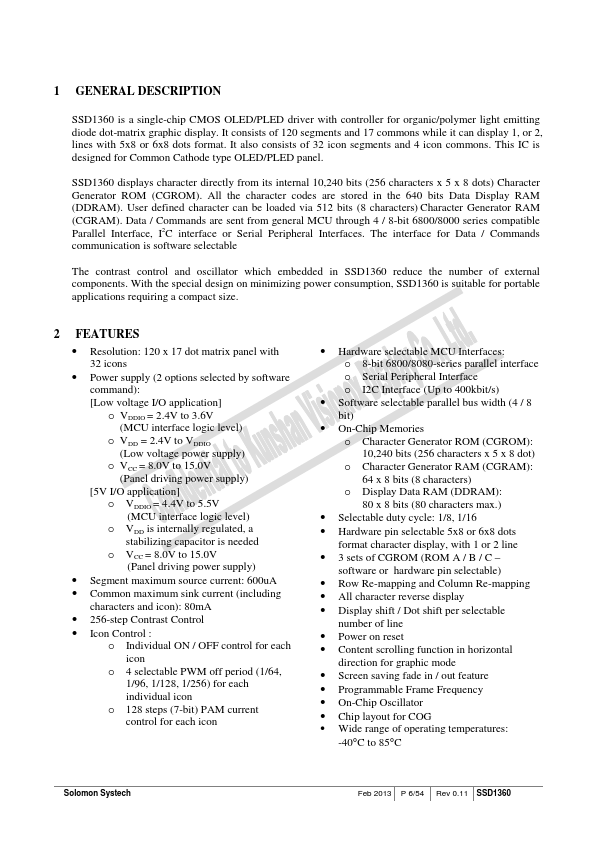

This IC is designed for Common Cathode type OLED/PLED panel. SSD1360 displays character directly from its internal 10,240 bits (256 characters x 5 x 8 dots) Character Generator ROM (CGROM). All the character codes are stored in the 640 bits Data Display RAM (DDRAM). User defined character can be loaded via 512 bits (8 characters) Character Generator RAM (CGRAM). Data / Commands are sent from general MCU through 4 / 8-bit 6800/8000 series compatible Parallel Interface, I2C interface or Serial Peripheral Interfaces. The interface for Data / Commands communication is software selectable The contrast control and oscillator which embedded in SSD1360 reduce the number of external components. With the special design on minimizing power consumption, SSD1360 is suitable for portable applications requiring a compact size. 2FEATURES

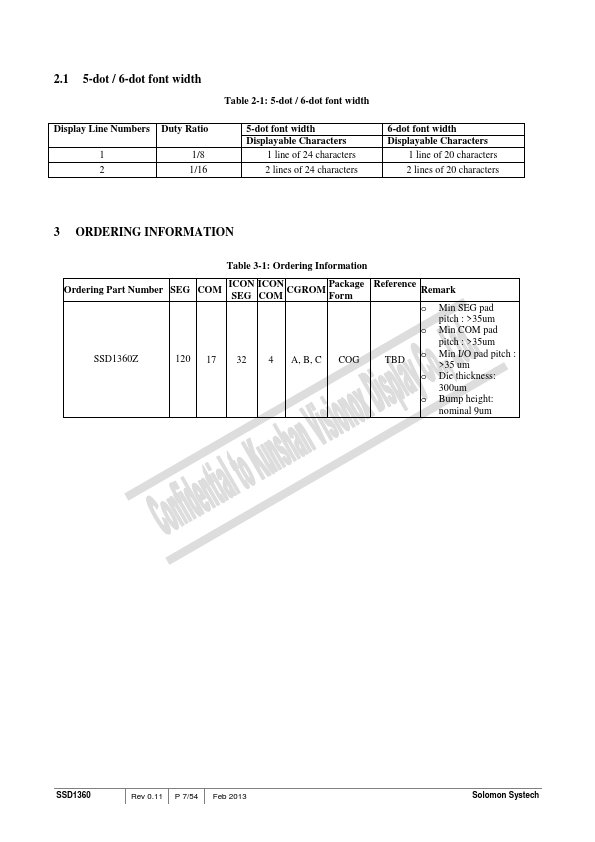

● Resolution: 120 x 17 dot matrix panel with 32 icons● Power supply (2 options selected by software command): [Low voltage I/O application] o VD...
