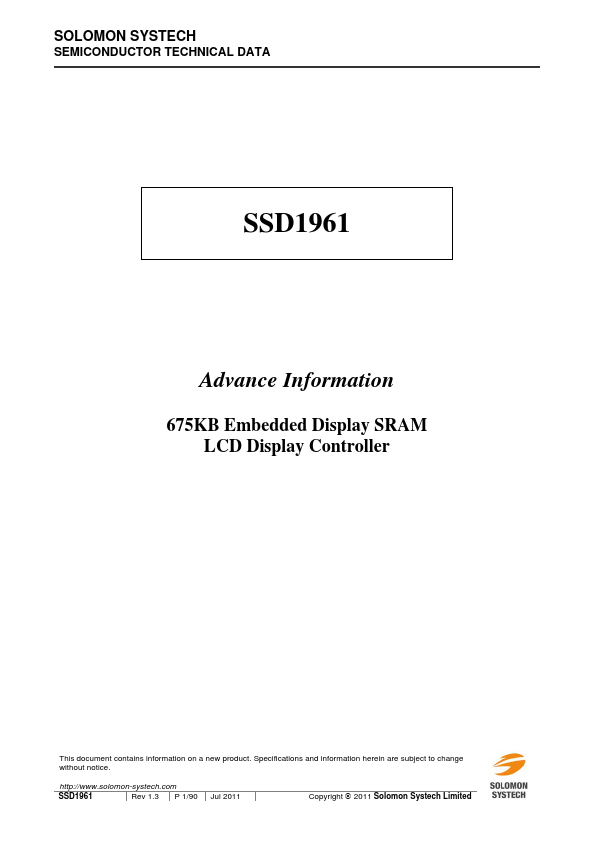

Solomon SSD1961
SSD1961 is a display controller of 5,529,600 bit frame buffer to support up to 640 x 480 x 18bit graphics content. It also equips parallel MCU interfaces in different bus width to receive graphics data and command from MCU. Its display interface supports common RAM-less LCD driver of color depth up to 18 bit-perpixel.| Part No. | SSD1961 |
|---|---|
| Datasheet | SSD1961 Download |
| Manufacturer |  Solomon |
| Description | 675KB Embedded Display SRAM LCD Display Controller |
| Buy | Stock & Price |
GENERAL DESCRIPTION
2FEATURES
● Display feature − 675kbyte (5,529,600bit) built-in frame buffer. Support up to 640 x 480 at 18bpp display − Support TFT 18 bit generic RGB interface panel − Support 8-bit serial RGB interface − Hardware rotation of 0, 90, 180, 270 degree − Hardware display mirroring − Hardware windowing − Programmable brightness, contrast and saturation control − Dynamic Backlight Control (DBC) via PWM signal● MCU connectivity − 8/9/16/18-bit MCU interface − Tearing effect signal
● I/O Connectivity − 4 GPIO pins
● Built-in clock generator
● Deep sleep mode for power saving
● 64 pin BGA package
● Core supply power (VDDPLL and VDDD): 1.2V±0.1V
● I/O supply power (VDDIO): 1.65V to 3.6V
● LCD interface supply power (VDDLCD): 1.65V to 3.6V 3 ORDERING INFORMATION Table 3-1: Ordering Information Ordering Part Number Package Form SSD1961G40 TFBGA-64 (Tray) SSD1961G40R TFBGA-64 (Tape & Reel) SSD1961 Rev 1.3 P 9/90 Jul 2011 Solomon Systech 4 BLOCK DIAGRAM Figure 4-1: SSD1961 Blo...
