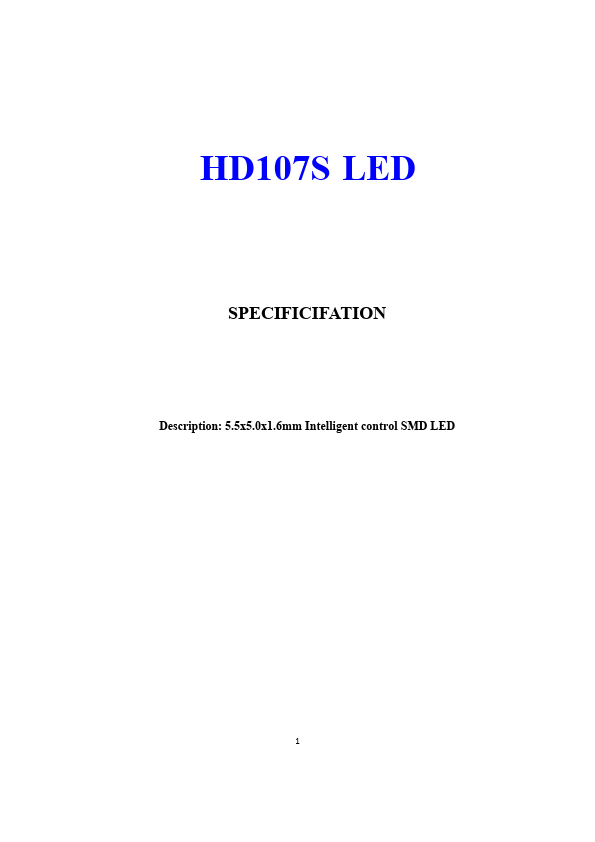

HD107S
HD107S is Intelligent control SMD LED manufactured by Suntech.
Description
: 5.5x5.0x1.6mm Intelligent control SMD LED

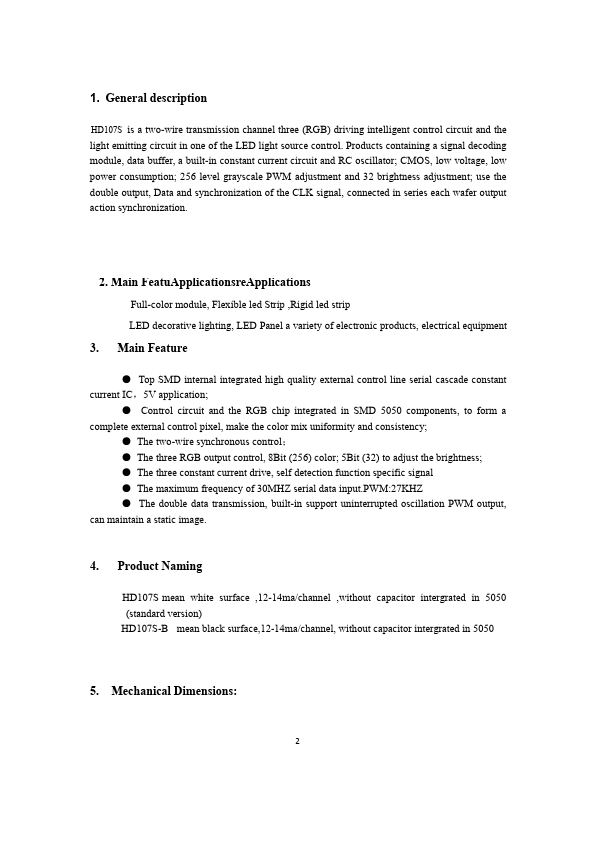

1. General description
HD107S is a two-wire transmission channel three (RGB) driving intelligent control circuit and the light emitting circuit in one of the LED light source control. Products containing a signal decoding module, data buffer, a built-in constant current circuit and RC oscillator; CMOS, low voltage, low power consumption; 256 level grayscale PWM adjustment and 32 brightness adjustment; use the double output, Data and synchronization of the CLK signal, connected in series each wafer output action synchronization.
2. Main Featu Applicationsre Applications
- - LFEul Dl-cdoelcoorrmatiovdeullieg,h Ftlienxgi,b Lle El Ded PSantreipl a,Rviagriidetlyedofsterliepctronic products, electrical equipment etc
3. Main Feature
- Top SMD internal integrated high quality external control line serial cascade constant current IC，5V application;
- Control circuit and the RGB chip integrated in SMD 5050 ponents, to form a plete external control pixel, make the color mix uniformity and consistency;
- The two-wire synchronous control；
- The three RGB output control, 8Bit (256) color; 5Bit (32) to adjust the brightness;
- The three constant current drive, self detection function specific signal
- The maximum frequency of 30MHZ serial data input.PWM:27KHZ
- The double data transmission, built-in support uninterrupted oscillation PWM output, can maintain a static image.
4. Product Naming
HD107S mean white surface ,12-14ma/channel ,without capacitor intergrated in 5050 (standard version) HD107S-B mean black surface,12-14ma/channel, without capacitor intergrated in 5050

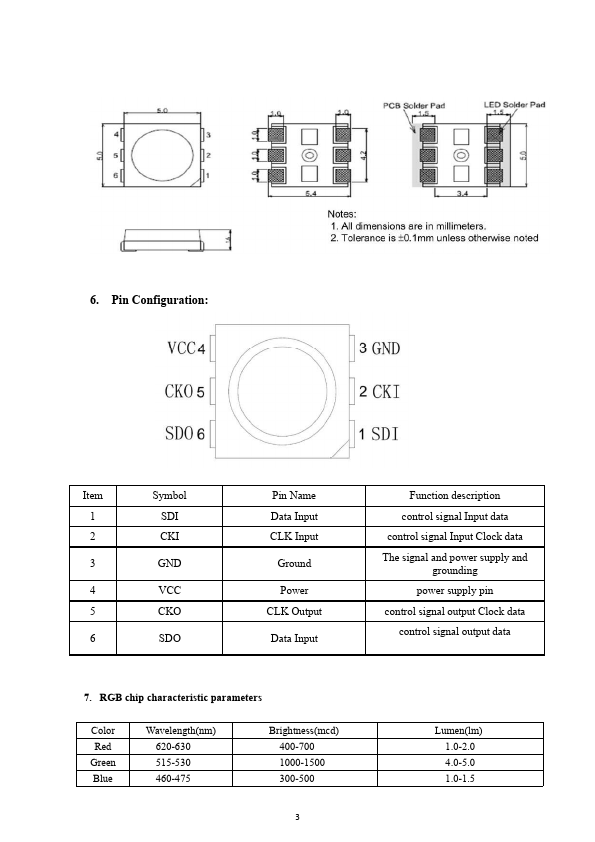

5. Mechanical Dimensions:
6. Pin Configuration:
Item
Symbol
Pin Name Data Input CLK Input
Ground Power CLK Output Data Input
Function description control signal Input data control signal Input Clock data The signal and power supply and grounding power supply pin control signal output Clock data control signal...
