Synaptics DHX91
The DHAN-S module is shipped with software that is immediately suited for a ULE device (node) where the application runs on an external MCU that communicates with the DHAN-S via the UART interface. The DHAN-S features a compact mechanical footprint, hibernation mode which facilitates long battery life in IoT applications and excellent RF Link and Selectivity characteristics.| Part No. | DHX91 |
|---|---|
| Datasheet | DHX91 Download |
| Manufacturer |  Synaptics |
| Description | DHAN-S DECT ULE Module |
| Buy | Stock & Price |

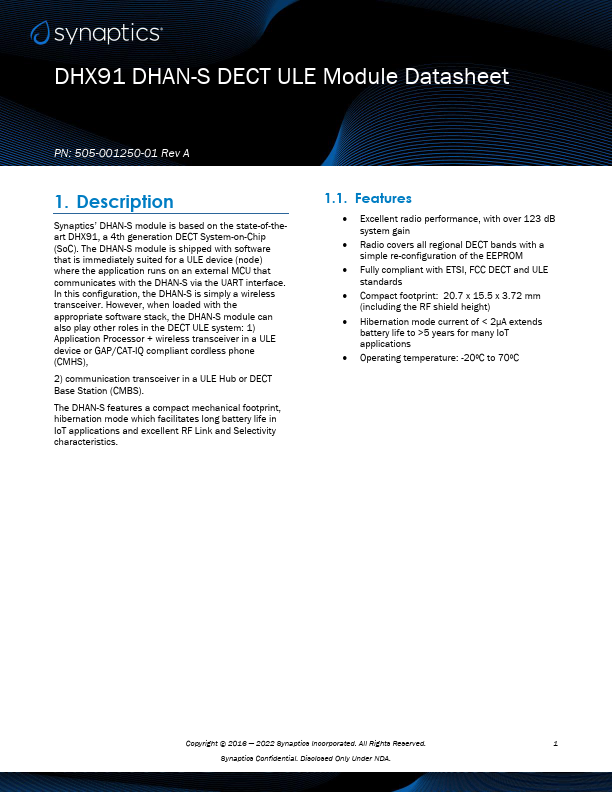

DESCRIPTION
Synaptics’ DHAN-S module is based on the state-of-theart DHX91, a 4th generation DECT System-on-Chip (SoC). In this configuration, the DHAN-S is simply a wireless transceiver. However, when loaded with the appropriate software stack, the DHAN-S module can also play other roles in the DECT ULE system: 1) Application Processor + wireless transceiver in a ULE device or GAP/CAT-IQ compliant cordless phone (CMHS), 2) communication transceiver in a ULE Hub or DECT Base Station (CMBS). 1.1.FEATURES
● Excellent radio performance, with over 123 dB system gain● Radio covers all regional DECT bands with a simple re-configuration of the EEPROM
● Fully compliant with ETSI, FCC DECT and ULE standards
● Compact footprint: 20.7 x 15.5 x 3.72 mm (including the RF shield height)
● Hibernation mode current of < 2µA extends battery life to >5 years for many IoT applications
● Operating temperature: -20ºC to 70ºC Copyright © 2016 — 2022 Synaptics Incorporated. All Rights Reserved. 1 Synaptics Confidential.
