• Part: VMM5330
  • Description: DisplayPort 1.4 Multi-Stream Hub Controller
  • Manufacturer: Synaptics
  • Size: 2.92 MB
Download VMM5330 Datasheet PDF
VMM5330 datasheet preview

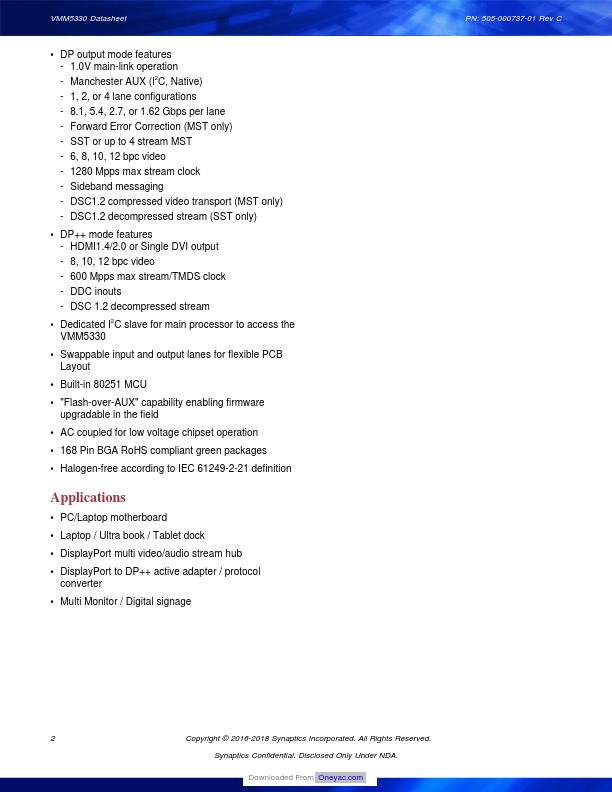

VMM5330 page 2
Page 2

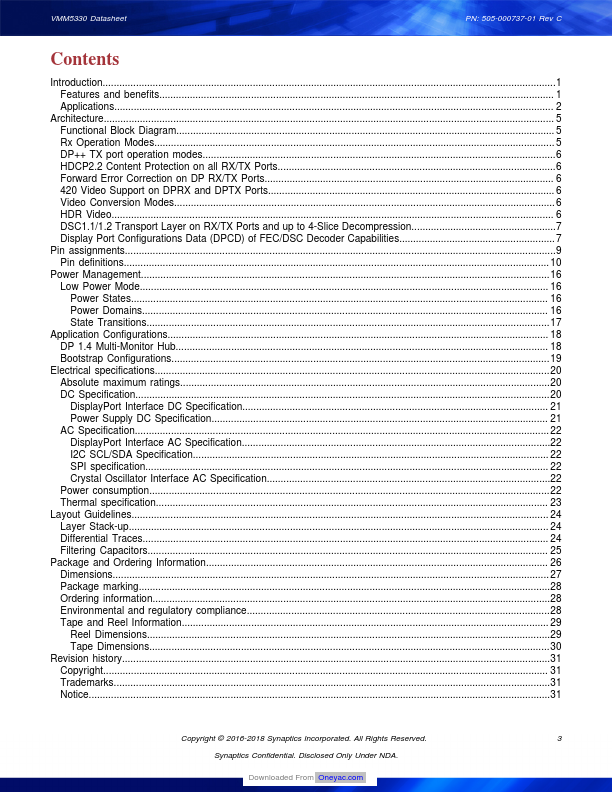

VMM5330 page 3
Page 3

Datasheet Summary

VMM5330 Datasheet DisplayPort 1.4 Multi-Stream Hub Controller PN: 505-000737-01 Rev C Introduction VMM5330 is a VESA DisplayPort™ v1.4/v1.1a and VESA DDM standard pliant multi-stream hub controller. All members of the VMM5000 family include one DP v1.4 input port and support multiple video/audio streams. VMM5330 has three DP1.4 output ports. After initialization, VMM5330 will detect downstream monitors, retrieve those monitors' EDID, and alert the upstream device. When the upstream device is DisplayPort v1.4 MST capable, it will see all the monitors connected to VMM5330. When the upstream device is DisplayPort v1.1a capable, VMM5330 can enable the patented ViewXpand™ technology and...
