Synoxo F115

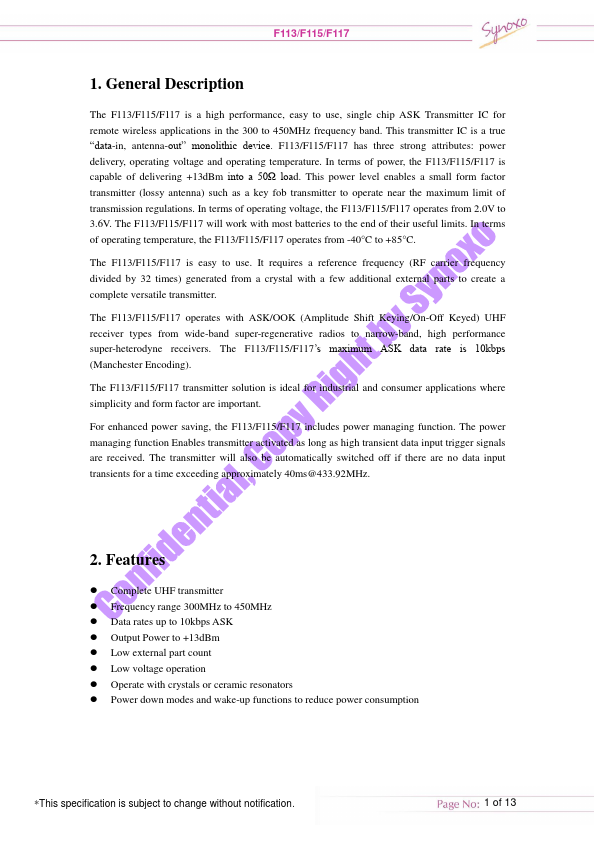

The F113/F115/F117 is a high performance, easy to use, single chip ASK Transmitter IC for remote wireless applications in the 300 to 450MHz frequency band. This transmitter IC is a true “data-in, antenna-out” monolithic device. This power level enables a small form factor transmitter (lossy antenna) such as a key fob transmitter to operate near the maximum limit of transmission regulations.

Part No.	F115
Datasheet	F115 Download
Manufacturer	Synoxo
Description	single chip ASK Transmitter
Buy	Stock & Price

GENERAL DESCRIPTION

F113/F115/F117 has three strong attributes: power delivery, operating voltage and operating temperature. In terms of power, the F113/F115/F117 is capable of delivering +13dBm into a 50Ω load. In terms of operating voltage, the F113/F115/F117 operates from 2.0V to 3.6V. The F113/F115/F117 will work with most batteries to the end of their useful limits. In terms of operating temperature, the F113/F115/F117 operates from -40°C to +85°C. The F113/F115/F117 is easy to use. It requires a reference frequency (RF carrier frequency divided by 32 times) generated from a crystal with a few additional external parts to create a complete versatile transmitter. The F113/F115/F117 operates with ASK/OOK (Amplitude Shift Keying/On-Off Keyed) UHF receiver types from wide-band super-regenerative radios to narrow-band, high performance super-heterodyne receivers. The F113/F115/F117’s maximum ASK data rate is 10kbps (Manchester Encoding). The F113/F115/F117 transmitter solution is ideal for industrial and consumer applications where simplicity and form factor are important.
