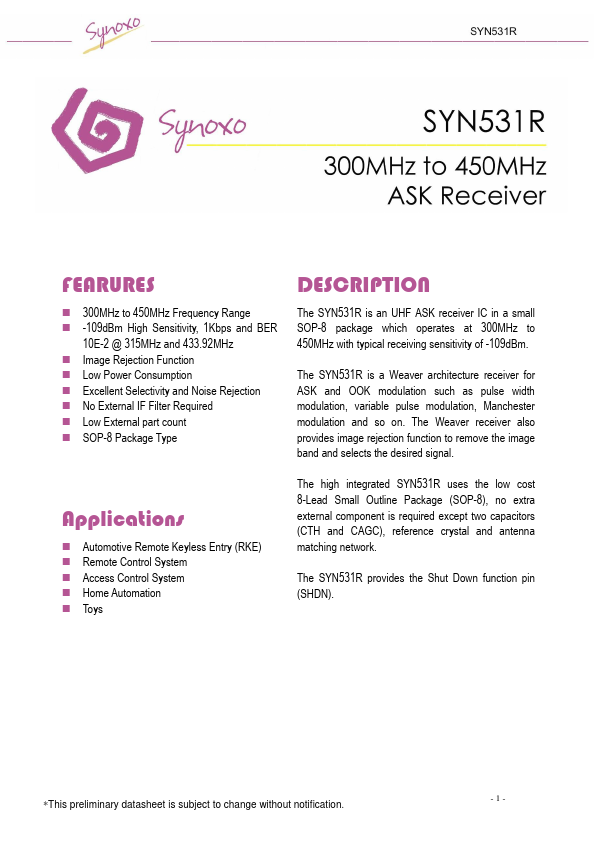

SYN531R
SYN531R is ASK Receiver manufactured by Synoxo.
FEARURES
- 300MHz to 450MHz Frequency Range
- -109dBm High Sensitivity, 1Kbps and BER
10E-2 @ 315MHz and 433.92MHz
- Image Rejection Function
- Low Power Consumption
- Excellent Selectivity and Noise Rejection
- No External IF Filter Required
- Low External part count
- SOP-8 Package Type
DESCRIPTION
The SYN531R is an UHF ASK receiver IC in a small SOP-8 package which operates at 300MHz to 450MHz with typical receiving sensitivity of -109dBm.
The SYN531R is a Weaver architecture receiver for ASK and OOK modulation such as pulse width modulation, variable pulse modulation, Manchester modulation and so on. The Weaver receiver also provides image rejection function to remove the image band...
