SA8349 - 3.0A 3.0-25.0V H-Bridge Driver

Description

The SA8349 is one channel H-Bridge driver IC, it provides integrated motor-driver solution for toys, robotics, consumer products and other low voltage or battery-powered motion control applications.

The SA8349 maximum operational voltage is 25.0V.

Features

  • Operation voltage up to 25.0V.
  • Continuous current output up to 3.0A.
  • Peak current up to 5.0A.
  • RDSON: 200-mΩ (HS + LS).
  • Support PWM control.
  • Over current protection.
  • Over temperature protection.
  • UVLO protection.
  • Low standby current.
  • Low quiescent current.
  • SOP8 package.

📥 Download Datasheet

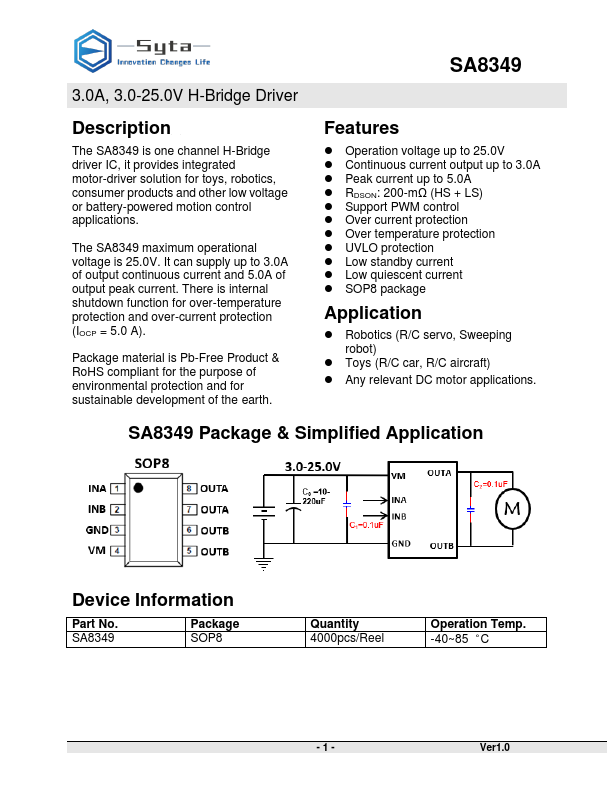

Datasheet preview – SA8349

Datasheet Details

Part number SA8349
Manufacturer Sytatek
File Size 142.47 KB
Description 3.0A 3.0-25.0V H-Bridge Driver
Datasheet download datasheet SA8349 Datasheet

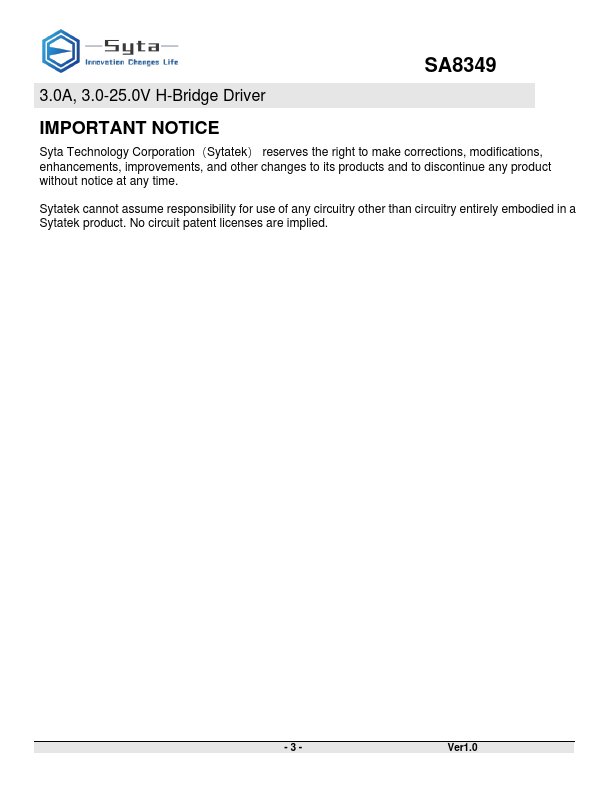

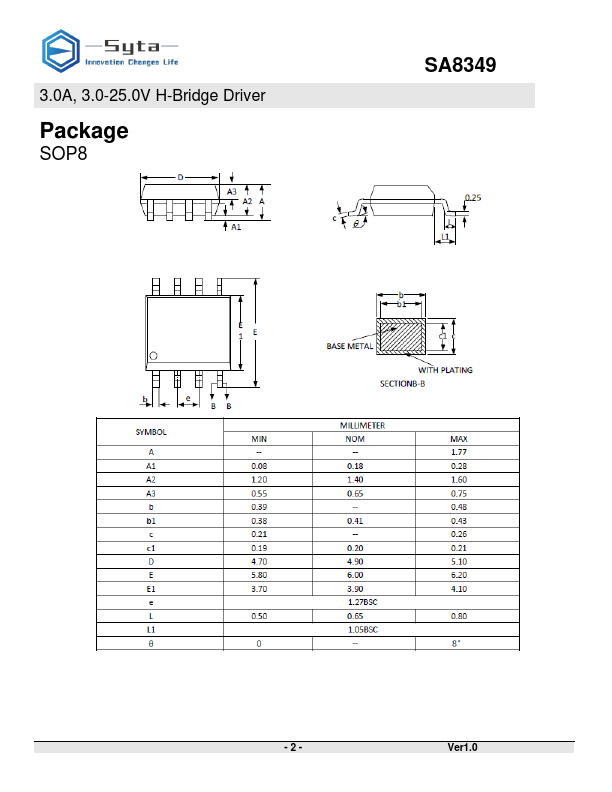

Additional preview pages of the SA8349 datasheet.

📁 Similar Datasheet

  • SA8301 - 2.0 ~ 7.0V 1.8A Single-Channel H-Bridge Driver (RBX)
  • SA8331 - Single-channel 3.0 ~ 15.0V 2.5A full-bridge driver (RBX)
  • SA8382 - Three-Phase PWM Waveform Generator (Mitel Networks Corporation)
  • SA8.0 - AXIAL LEAD TRANSIENT VOLTAGE SUPPRESSORS (MIC)
  • SA8.0 - Transient Voltage Suppression (TVS) Diodes (Crydom)
  • SA8.0 - Transient Voltage Suppressors (Microsemi)
  • SA8.0 - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR (Pan Jit International)
  • SA8.0 - 500W TRANSIENT VOLTAGE SUPPRESSOR (Won-Top Electronics)
  • SA8.0 - Transient Voltage Suppressors (Vishay)
  • SA8.0 - Transient Voltage Suppressors (Crownpo)
Other Datasheets by Sytatek
  • SA8340 - 3.0-25.0V 4.0A Brushed DC Motor Driver
  • SA8342 - 1.5A 3.0-25.0V H-Bridge Driver
  • SA8345 - 3.5A 3.0-25.0V H-Bridge Driver
  • SA8301A - 0.6A continuous current H-Bridge driver
  • SA8301B - 1.0A continuous current H-Bridge driver
  • SA8301P - 1.2A continuous current H-Bridge driver
  • SA8301S - 1.2A continuous current H-Bridge driver
  • SA8311 - 2.0A continuous current H-Bridge driver

Full PDF Text Transcription

Click to expand full text
3.0A, 3.0-25.0V H-Bridge Driver SA8349 Description The SA8349 is one channel H-Bridge driver IC, it provides integrated motor-driver solution for toys, robotics, consumer products and other low voltage or battery-powered motion control applications. The SA8349 maximum operational voltage is 25.0V. It can supply up to 3.0A of output continuous current and 5.0A of output peak current. There is internal shutdown function for over-temperature protection and over-current protection (IOCP = 5.0 A). Package material is Pb-Free Product & RoHS compliant for the purpose of environmental protection and for sustainable development of the earth. Features ⚫ Operation voltage up to 25.0V ⚫ Continuous current output up to 3.0A ⚫ Peak current up to 5.
