Datasheet Details
| Part number | MBR0520 |
|---|---|
| Manufacturer | Taitron Components |
| File Size | 213.87 KB |
| Description | Two Terminals Schottky Barrier Diode |
| Datasheet | MBR0520-TAITRON.pdf |
|
|
Overview: Two Terminals Schottky Barrier Diode MBR0520 Two Terminals Schottky Barrier.
| Part number | MBR0520 |
|---|---|
| Manufacturer | Taitron Components |
| File Size | 213.87 KB |
| Description | Two Terminals Schottky Barrier Diode |
| Datasheet | MBR0520-TAITRON.pdf |
|
|
|

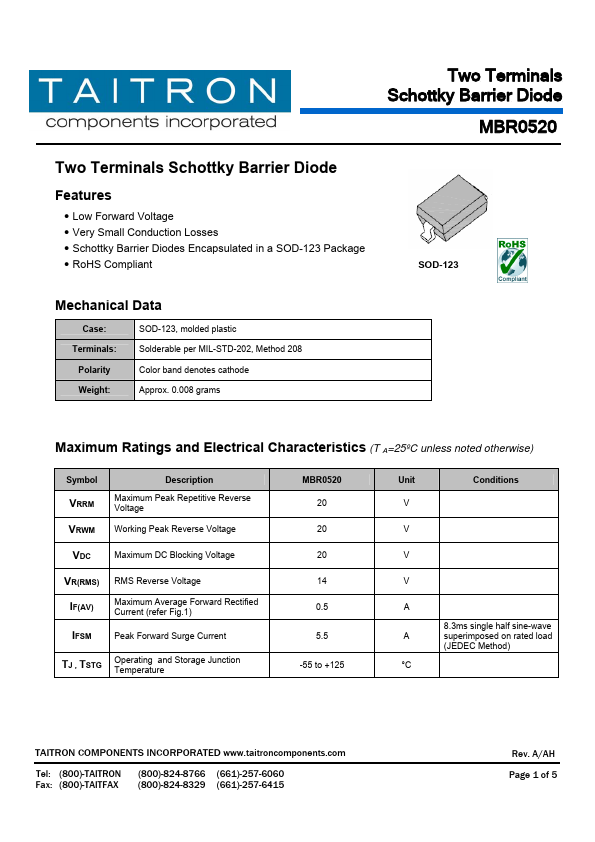

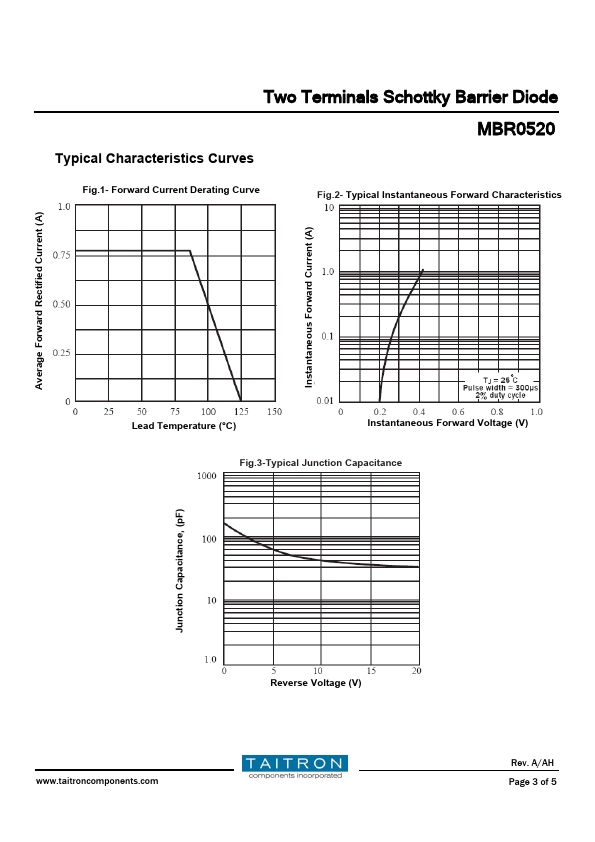

Maximum Peak Repetitive Reverse Voltage Working Peak Reverse Voltage VDC Maximum DC Blocking Voltage VR(RMS) IF(AV) RMS Reverse Voltage Maximum Average Forward Rectified Current (refer Fig.1) IFSM Peak Forward Surge Current TJ , TSTG Operating and Storage Junction Temperature MBR0520 20 20 20 14 0.5 5.5 -55 to +125 Unit Conditions V V V V A 8.3ms single half sine-wave A superimposed on rated load (JEDEC Method) °C TAITRON PONENTS INCORPORATED .taitronponents.
Tel: (800)-TAITRON (800)-824-8766 (661)-257-6060 Fax: (800)-TAITFAX (800)-824-8329 (661)-257-6415 Rev.

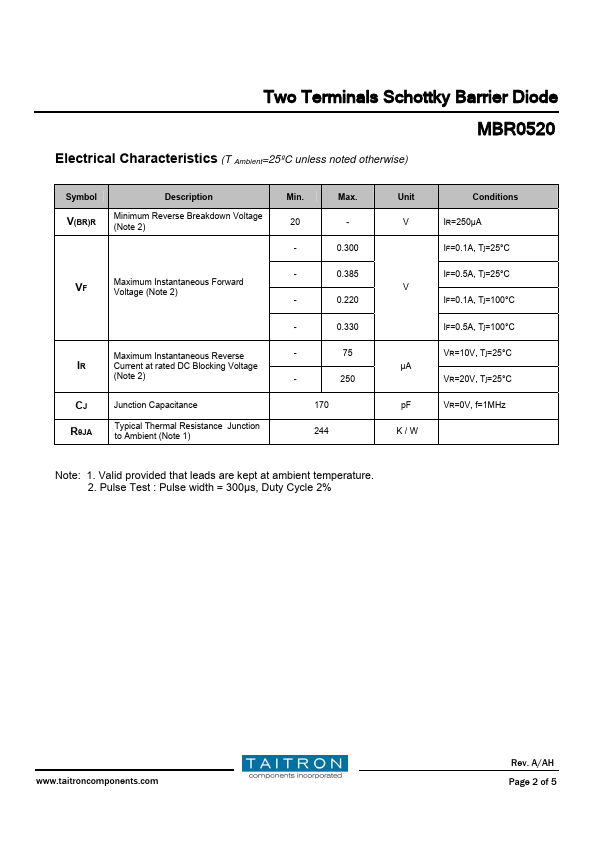

A/AH Page 1 of 5 Two Terminals Schottky Barrier Diode MBR0520 Electrical Characteristics (T Ambient=25ºC unless noted otherwise) Symbol V(BR)R Description Minimum Reverse Breakdown Voltage (Note 2) VF Maximum Instantaneous Forward Voltage (Note 2) Maximum Instantaneous Reverse IR Current at rated DC Blocking Voltage (Note 2) CJ RθJA Junction Capacitance Typical Thermal Resistance Junction to Ambient (Note 1) Min.
