SS29 Datasheet (Taitron Components)

Part SS29
Description 2.0A Surface Mount Schottky Rectifier
Manufacturer Taitron Components
Size 184.25 KB
SS29 Datasheet (PDF) Download
Pricing from 0.2439 USD, available from Rochester Electronics and DigiKey.Powered by Octopart
🏠
Taitron Components

SS29 Overview

Key Specifications

Package: SMB
Mount Type: Surface Mount
Pins: 2
Height: 2.45 mm

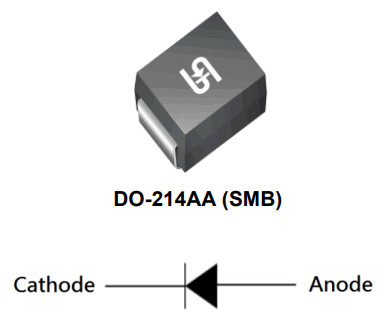

SS29 reference image

Representative SS29 image (package may vary by manufacturer)

Description

SS22 SS23 SS24 SS25 SS26 SS29 SS210 Unit Conditions S2/SS22 S3/SS23 S4/SS24 S5/SS25 S6/SS26 S9/SS29 S10/SS210.

Key Features

  • For surface mount applications
  • Metal-Semiconductor Junction with Guarding
  • Epitaxial Construction
  • Very low forward voltage drop
  • High current capability
SS29 datasheet preview

Price & Availability

Seller Inventory Price Breaks Buy
Rochester Electronics 6000 100+ : 0.2439 USD
500+ : 0.2195 USD
1000+ : 0.2024 USD
10000+ : 0.1805 USD		 View Offer
DigiKey 814 1+ : 0.74 USD
10+ : 0.475 USD
100+ : 0.374 USD
500+ : 0.2873 USD		 View Offer
