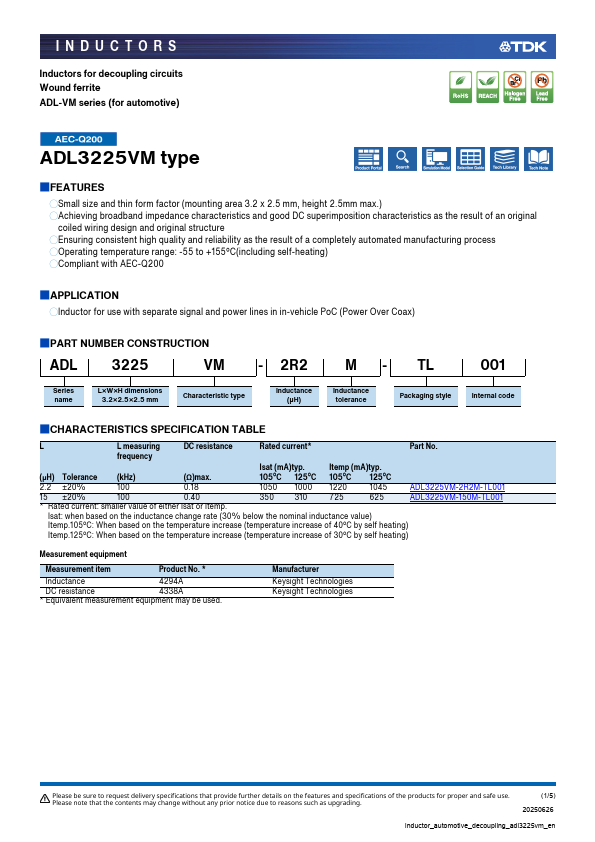

ADL3225VM
FEATURES
̋Small size and thin form factor (mounting area 3.2 x 2.5 mm, height 2.5mm max.) ̋Achieving broadband impedance characteristics and good DC superimposition characteristics as the result of an original coiled wiring design and original structure ̋Ensuring consistent high quality and reliability as the result of a pletely automated manufacturing process ̋Operating temperature range: -55 to +155°C(including self-heating) ̋pliant with AEC-Q200
˙APPLICATION
̋Inductor for use with separate signal and power lines in in-vehicle Po C (Power Over Coax)
˙PART NUMBER CONSTRUCTION
ADL 3225
- 2R2
Series name
L×W×H dimensions 3.2×2.5×2.5 mm
Characteristic type
Inductance (μH)
- TL
Inductance tolerance
Packaging style
Internal code
˙CHARACTERISTICS SPECIFICATION TABLE
L measuring
DC resistance
Rated current- frequency
Part No.
Isat (m A)typ.
Itemp (m A)typ.
(μH) Tolerance
(k Hz)
(Ω)max.
105°C 125°C 105°C 125°C
2.2 ±20%
1050 1000...
