ADL4532VK
FEATURES
̋Achieving broadband impedance characteristics and good DC superimposition characteristics as the result of an original coiled wiring design and original structure
̋Operating temperature range: -55 to +155°C(including self-heating) ̋pliant with AEC-Q200
˙APPLICATION
̋Inductor for use with separate signal and power lines in in-vehicle Po C (Power Over Coax)
˙PART NUMBER CONSTRUCTION
ADL 4532
- 3R0
Series name

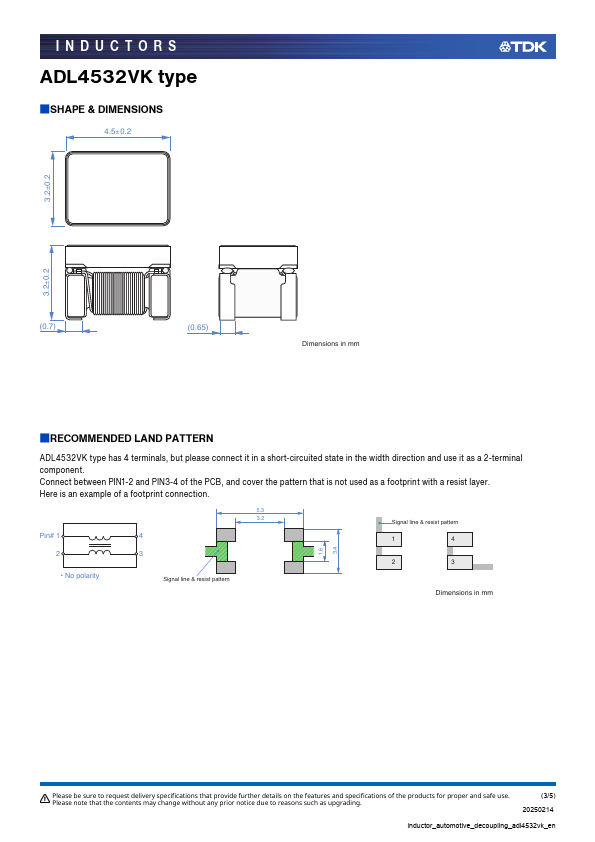

L×W×H dimensions 4.5×3.2×3.2 mm
Characteristic type
Inductance (μH)
- TL
Inductance tolerance
Packaging style
Internal code
˙CHARACTERISTICS SPECIFICATION TABLE
L measuring
DC resistance
Isat.
Itemp. frequency
Part No.
(m A)typ. (m A)typ.
(μH) Tolerance
(k Hz)
(Ω)max.
105deg.C 125deg.C
3 ±20%
ADL4532VK-3R0M-TL000
10...
