B32613

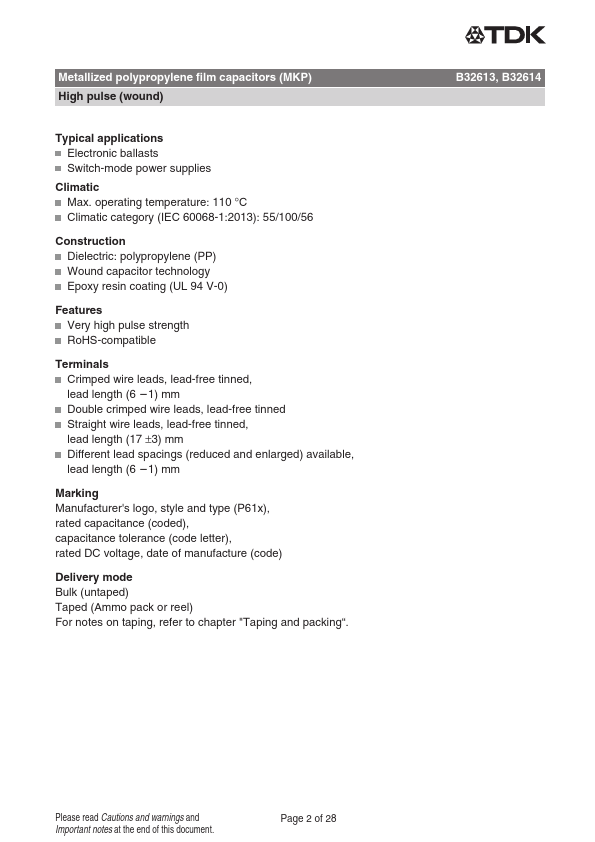

Features
Very high pulse strength Ro HS-patible
Terminals Crimped wire leads, lead-free tinned, lead length (6 1) mm Double crimped wire leads, lead-free tinned Straight wire leads, lead-free tinned, lead length (17 ±3) mm Different lead spacings (reduced and enlarged) available, lead length (6 1) mm
Marking Manufacturer's logo, style and type (P61x), rated capacitance (coded), capacitance tolerance (code letter), rated DC voltage, date of manufacture (code)
Delivery mode Bulk (untaped) Taped (Ammo pack or reel) For notes on taping, refer to chapter "Taping and packing“.
B32613, B32614
Please read Cautions and warnings and Important notes at the end of this document.
Page2of2

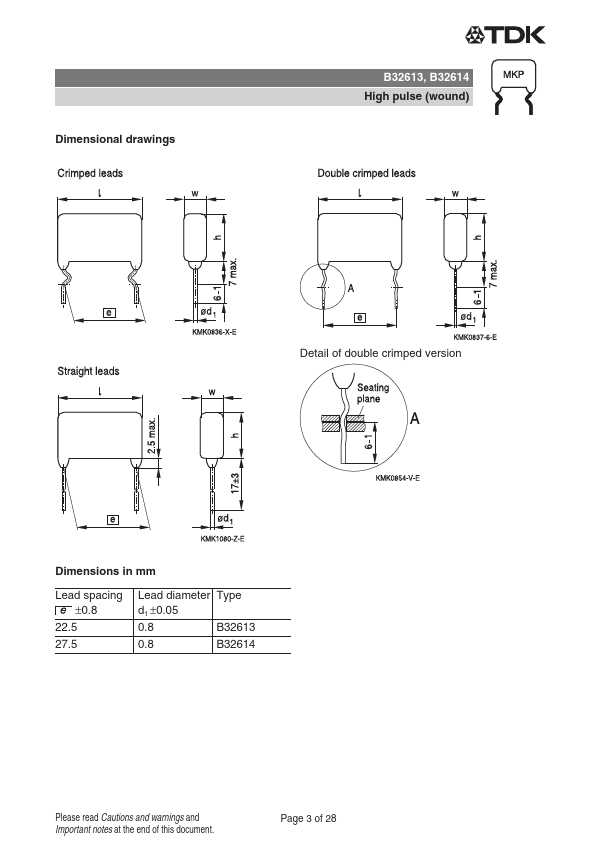

Dimensional drawings
B32613, B32614 High pulse (wound)
Detail of double crimped version
Dimensions in mm
Lead spacing ±0.8
22.5 27.5
Lead diameter Type d1 ±0.05 0.8
B32614
Please read Cautions and warnings and Important notes at the end of this document.
Page3of2
B32613, B32614...
