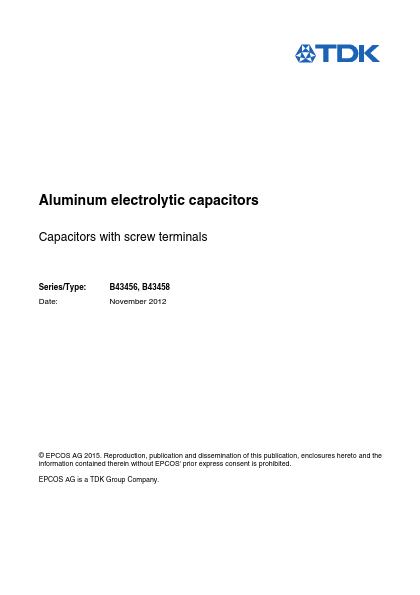

TDK B43456-S9758-M001
Aluminum electrolytic capacitors
| Part No. | B43456-S9758-M001 |
|---|---|
| Datasheet | B43456-S9758-M001 Download |
| Manufacturer |  TDK |
| Description | Aluminum electrolytic capacitors |
| Buy | Stock & Price |

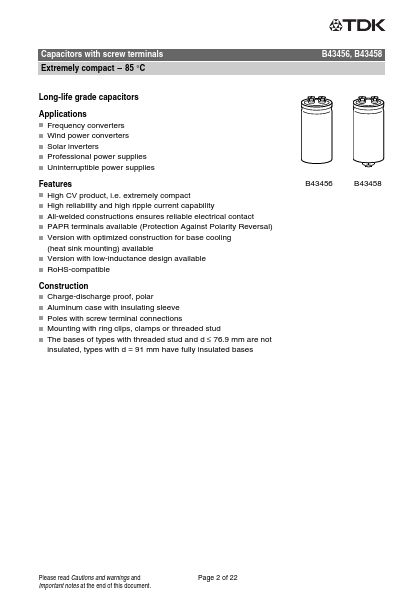

APPLICATIONS
Frequency converters Wind power converters Solar inverters Professional power supplies Uninterruptible power suppliesFEATURES

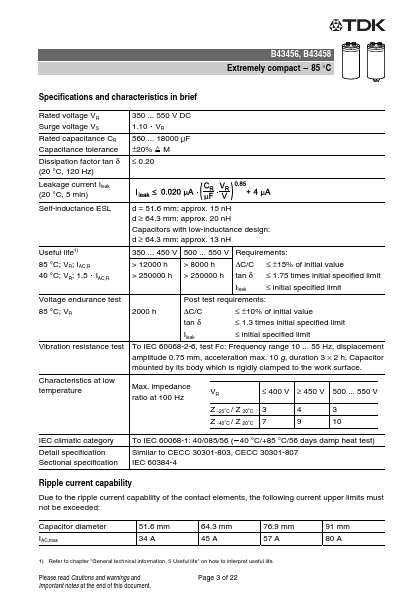

High CV product, i.e. extremely compact High reliability and high ripple current capability All-welded constructions ensures reliable electrical contact PAPR terminals available (Protection Against Polarity Reversal) Version with optimized construction for base cooling (heat sink mounting) available Version with low-inductance design available RoHS-compatible Construction Charge-discharge proof, polar Aluminum case with insulating sleeve Poles with screw terminal connections Mounting with ring clips, clamps or threaded stud The bases of types with threaded stud and d ≤ 76.9 mm are not insulated, types with d = 91 mm have fully insulated bases B43456, B43458 B43456 B43458 Please read Cautions and warnings and Important notes at the end of this document. Page 2 of 22 B43456, B43458 Extremely compact 85 °C Specifications and characteristics in brief Rated voltage VR Surge voltage VS Rated capacitance CR Capacitance tolerance Dissipation factor tan δ (20 °C, 120 Hz) 350 ...
