B82141B
B82141B is RF chokes manufactured by TDK Corporation.
- Part of the B82141A comparator family.
- Part of the B82141A comparator family.

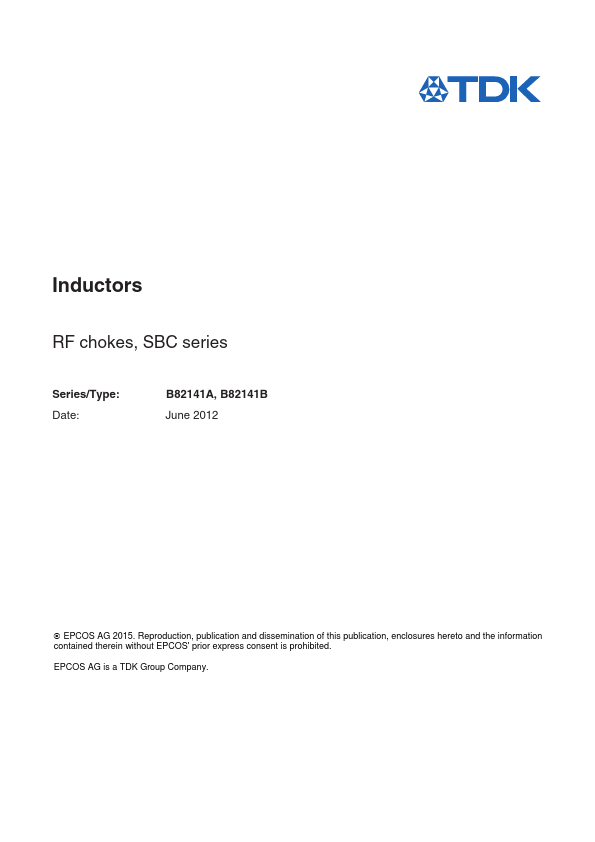

Inductors
RF chokes, SBC series
Series/Type: Date:
Data Sheet
B82141A, B82141B June 2012
EPCOS AG 2015. Reproduction, publication and dissemination of this publication, enclosures hereto and the information contained therein without EPCOS' prior express consent is prohibited.
EPCOS AG is a TDK Group pany.

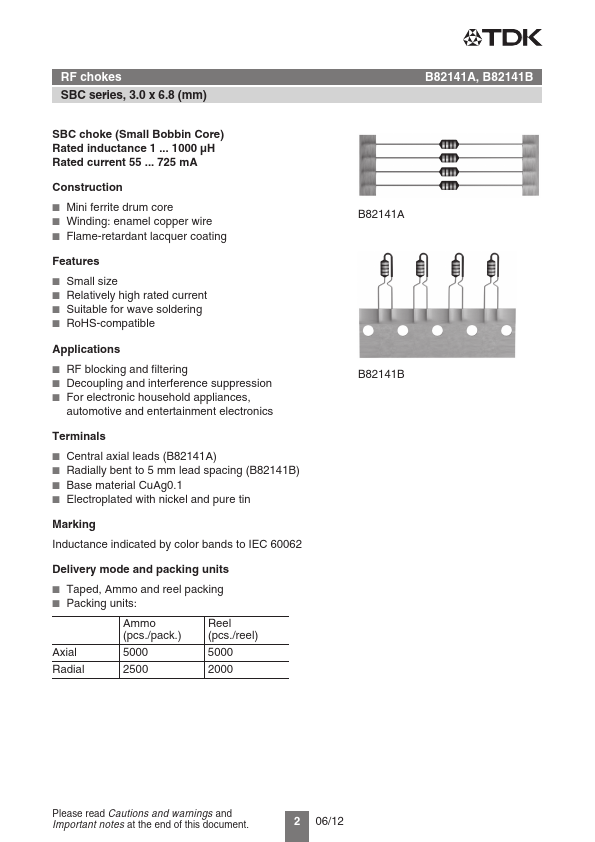

RF chokes SBC series, 3.0 x 6.8 (mm)
SBC choke (Small Bobbin Core) Rated inductance 1 ... 1000 μH Rated current 55 ... 725 mA
Construction
- Mini ferrite drum core
- Winding: enamel copper wire
- Flame-retardant lacquer coating
Features
- Small size
- Relatively high rated current
- Suitable for wave soldering
- RoHS-patible
Applications
- RF blocking and filtering
-...
