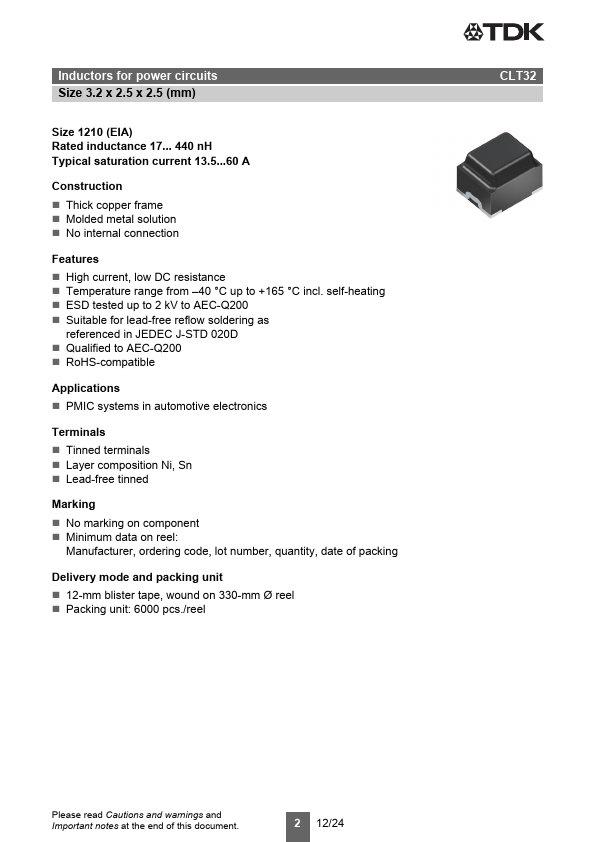

CLT32
Features
- High current, low DC resistance
- Temperature range from
- 40 °C up to +165 °C incl. self-heating
- ESD tested up to 2 k V to AEC-Q200
- Suitable for lead-free reflow soldering as referenced in JEDEC J-STD 020D
- Qualified to AEC-Q200
- Ro HS-patible
Applications
- PMIC systems in automotive electronics
Terminals
- Tinned terminals
- Layer position Ni, Sn
- Lead-free tinned
Marking
- No marking on ponent
- Minimum data on reel:
Manufacturer, ordering code, lot number, quantity, date of packing
Delivery mode and packing unit
- 12-mm blister tape, wound on 330-mm Ø reel
- Packing unit: 6000 pcs./reel
Please read Cautions and warnings and Important notes at the end of this document.
2 12/24
Inductors for power circuits Size 3.2 x 2.5 x 2.5 (mm)

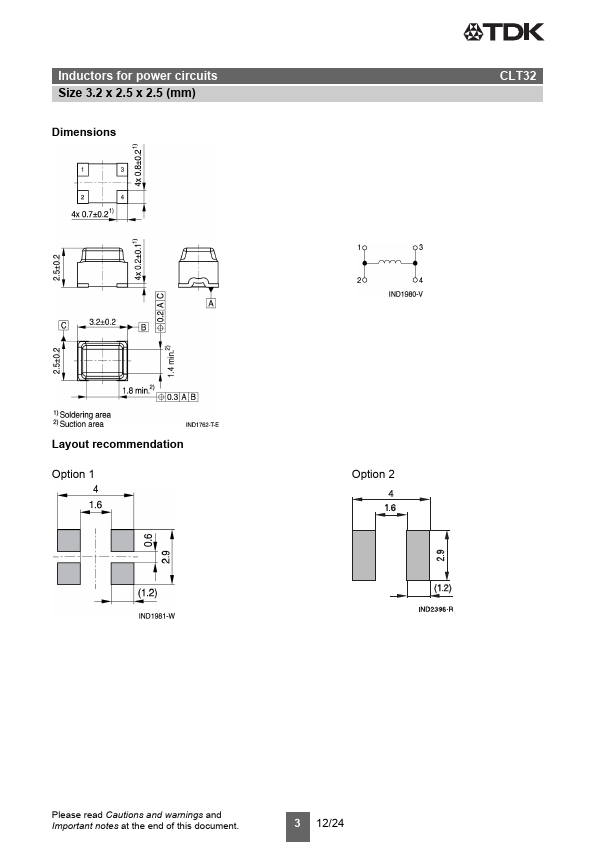

Dimensions
Layout remendation Option 1
Option 2
Please read Cautions and warnings and Important notes at the end of this document.
3 12/24
Inductors for power circuits Size 3.2 x 2.5 x 2.5 (mm)
Taping an packing...
