IAM-20680HV - High Performance Automotive 6-Axis MotionTracking Device

General Description

The IAM-20680HV is a 6-axis MotionTracking device for Automotive non-safety applications that combines a 3axis gyroscope and a 3-axis accelerometer in a thin 3x3x0.75mm3 (16-pin LGA) package.

Key Features

  • include on-chip 16-bit ADCs, programmable digital filters, an embedded temperature sensor, and two programmable interrupts. The device features I2C and SPI serial interfaces, a VDD operating range of 1.71V to 3.6V, and a separate digital IO supply, VDDIO from 1.71V to 3.6V. BLOCK.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IAM-81008 Active Double Balanced Mixer/IF Amp HP
IAM-81028 Active Double Balanced Mixer/IF Amp HP
IAM-82008 Active Double Balanced Mixer/IF Amp HP
IAM-82028 Active Double Balanced Mixer/IF Amp HP
IAM-91563 3V Downconverter AVAGO

Other Datasheets by TDK Corporation

Part Number Description
IAM-20680HP High Performance Automotive 6-Axis MotionTracking
IAM-20680HT High Performance Automotive 6-Axis MotionTracking
IAM-20680 High Performance Automotive 6-Axis MotionTracking
IAM-20685 Automotive 6-axis MotionTracking MEMS Device
IAM-20381 High Performance 3-Axis MotionTracking Accelerometer

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

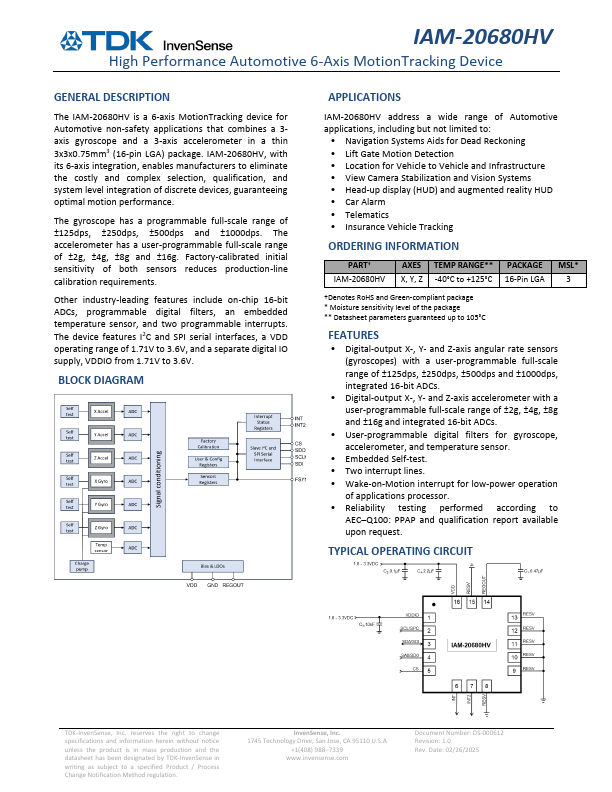

IAM-20680HV High Performance Automotive 6-Axis MotionTracking Device GENERAL DESCRIPTION The IAM-20680HV is a 6-axis MotionTracking device for Automotive non-safety applications that combines a 3axis gyroscope and a 3-axis accelerometer in a thin 3x3x0.75mm3 (16-pin LGA) package. IAM-20680HV, with its 6-axis integration, enables manufacturers to eliminate the costly and complex selection, qualification, and system level integration of discrete devices, guaranteeing optimal motion performance. The gyroscope has a programmable full-scale range of ±125dps, ±250dps, ±500dps and ±1000dps. The accelerometer has a user-programmable full-scale range of ±2g, ±4g, ±8g and ±16g. Factory-calibrated initial sensitivity of both sensors reduces production-line calibration requirements.
