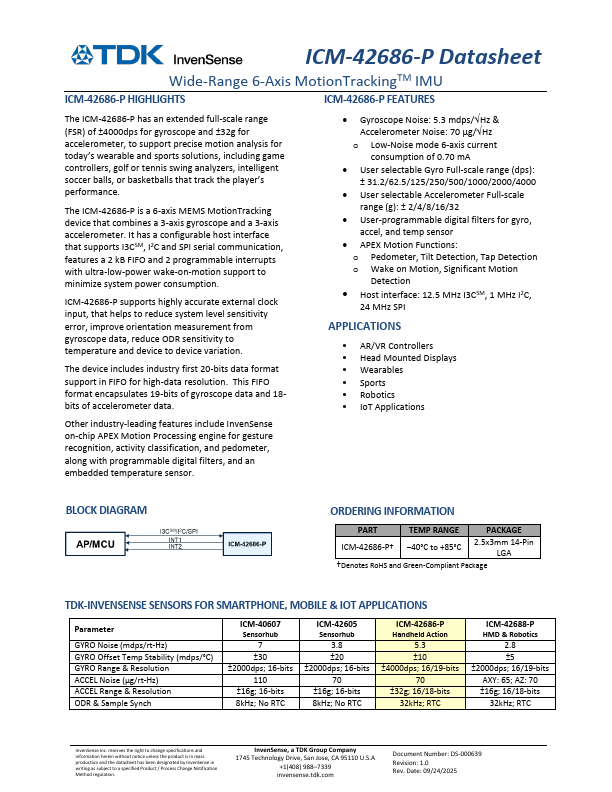

ICM-42686-P Datasheet Wide-Range 6-Axis MotionTrackingTM IMU ICM-42686-P HIGHLIGHTS ICM-42686-P Features The ICM-42686-P has an extended full-scale range (FSR) of ±4000dps for gyroscope and ±32g for accelerometer, to support precise motion analysis for today’s wearable and sports solutions, including game controllers, golf or tennis swing analyzers, intelligent soccer balls, or basketballs that track the player’s performance. The ICM-42686-P is a 6-axis MEMS MotionTracking device that bines a 3-axis gyroscope and a 3-axis accelerometer. It has a configurable host interface that supports I3CSM, I2C and SPI serial munication, Features a 2 kB FIFO and 2 programmable interrupts with...
