ICM-45686 - High Performance Dual-Interface 6-Axis MEMS MotionTracking Device

Key Features

  • up to 8Kbytes FIFO and 2 programmable interrupts. The ICM-45686 supports the lowest gyro and accel sensor noise in this IMU class, and has the highest stability against temperature, shock (up to 20,000g) or SMT/bend induced offset as well as immunity against out-of-band vibration induced noise. Other industryleading features include InvenSense on-chip APEX Motion Processing engine for gesture recognition, activity classification, and pedometer, along with programmable digital filters, and an emb.

📥 Download Datasheet

Datasheet Details

Part number ICM-45686
Manufacturer TDK Corporation
File Size 1.58 MB
Description High Performance Dual-Interface 6-Axis MEMS MotionTracking Device
Datasheet download datasheet ICM-45686 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ICM-4743 High-Current Choke Vishay
ICM-0805 Surface Mount Common Mode Choke Vishay Siliconix
ICM-1206 Surface Mount Common Mode Choke Vishay Siliconix
ICM-20600 High Performance 6-Axis MEMS MotionTracking InvenSense
ICM-20601 Wide-Range 6-Axis MotionTracking InvenSense

Other Datasheets by TDK Corporation

Part Number Description
ICM-45605 High Performance 6-Axis MEMS MotionTracking Device
ICM-40627 High Performance 6-Axis MotionTracking IMU
ICM-42605 Premium Performance 6-Axis MotionTracking IMU
ICM-42670-P High Performance 6-Axis MotionTracking IMU
ICM-42688-P 6-Axis MEMS MotionTracking

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

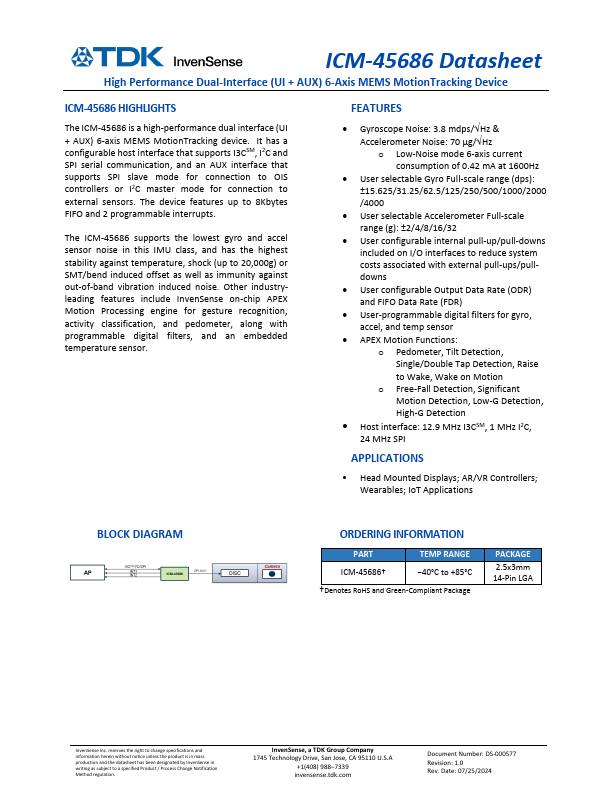

ICM-45686 Datasheet High Performance Dual-Interface (UI + AUX) 6-Axis MEMS MotionTracking Device ICM-45686 HIGHLIGHTS The ICM-45686 is a high-performance dual interface (UI + AUX) 6-axis MEMS MotionTracking device. It has a configurable host interface that supports I3CSM, I2C and SPI serial communication, and an AUX interface that supports SPI slave mode for connection to OIS controllers or I2C master mode for connection to external sensors. The device features up to 8Kbytes FIFO and 2 programmable interrupts. The ICM-45686 supports the lowest gyro and accel sensor noise in this IMU class, and has the highest stability against temperature, shock (up to 20,000g) or SMT/bend induced offset as well as immunity against out-of-band vibration induced noise.
