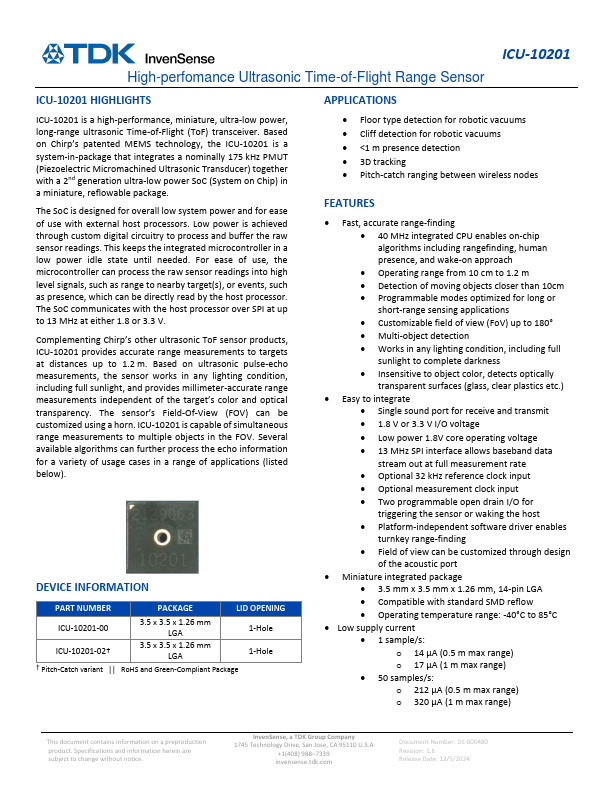

ICU-10201 Datasheet (High-perfomance Ultrasonic Time-of-Flight Range Sensor)

Part: ICU-10201
Manufacturer: TDK Corporation
Size: 1.24 MB

ICU-10201 Key Features

Fast, accurate range-finding
40 MHz integrated CPU enables on-chip algorithms including rangefinding, human presence, and wake-on approach
Operating range from 10 cm to 1.2 m
Detection of moving objects closer than 10cm
Programmable modes optimized for long or short-range sensing

ICU-10201 Description

ICU-10201 High-perfomance Ultrasonic Time-of-Flight Range Sensor ICU-10201 HIGHLIGHTS ICU-10201 is a high-performance, miniature, ultra-low power, long-range ultrasonic Time-of-Flight (ToF) transceiver. Based on Chirp’s patented MEMS technology, the ICU-10201 is a system-in-package that integrates a nominally 175 kHz PMUT (Piezoelectric Micromachined Ultrasonic Transducer) together with a 2nd generation ultra-low...

ICU-10201 Applications

Floor type detection for robotic vacuums
Cliff detection for robotic vacuums
