IIM-42351 - High-performance 3-Axis Accelerometer

Description

The IIM-42351 is a 3-axis accelerometer packaged in a small 2.5 mm x 3 mm x 0.91 mm (14-pin LGA) package.

Low noise: 70 µg/√Hz Low

Features

  • an operating voltage range from 3.6V down to 1.71V.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IIMP1832 3.3V P Power Suppl Monitor and Reset Circuit IMP Inc

Other Datasheets by TDK Corporation

Part Number Description
IIM-42352 High-performance 3-Axis SmartIndustrial Accelerometer
IIM-42652 High-performance 6-Axis SmartIndustrial MotionTracking MEMS
IIM-42653 High-performance 6-Axis MotionTracking MEMS Device
IIM-20670 6-axis MotionTracking MEMS Device

Full PDF Text Transcription

Click to expand full text

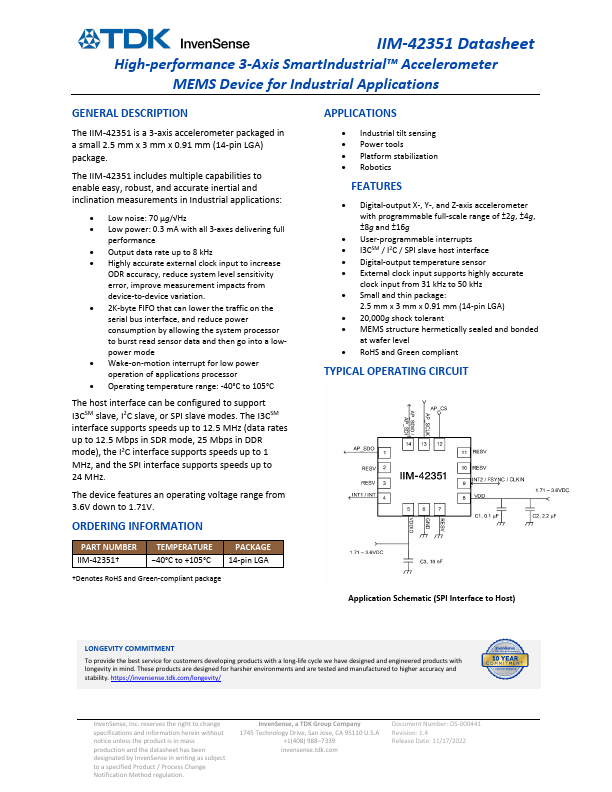

IIM-42351 Datasheet High-performance 3-Axis SmartIndustrial™ Accelerometer MEMS Device for Industrial Applications GENERAL DESCRIPTION The IIM-42351 is a 3-axis accelerometer packaged in a small 2.5 mm x 3 mm x 0.91 mm (14-pin LGA) package. The IIM-42351 includes multiple capabilities to enable easy, robust, and accurate inertial and inclination measurements in Industrial applications: • Low noise: 70 µg/√Hz • Low power: 0.3 mA with all 3-axes delivering full performance • Output data rate up to 8 kHz • Highly accurate external clock input to increase ODR accuracy, reduce system level sensitivity error, improve measurement impacts from device-to-device variation.
