IIM-42653 Datasheet High-performance 6-axis Motiontracking Mems Device

Manufacturer: TDK Corporation

Overview: IIM-42653 Datasheet High-performance 6-Axis SmartIndustrial™ MotionTracking MEMS Device for Industrial Applications.

Datasheet Details

Part number	IIM-42653
Manufacturer	TDK Corporation
File Size	1.89 MB
Description	High-performance 6-Axis MotionTracking MEMS Device
Datasheet	IIM-42653-TDK.pdf

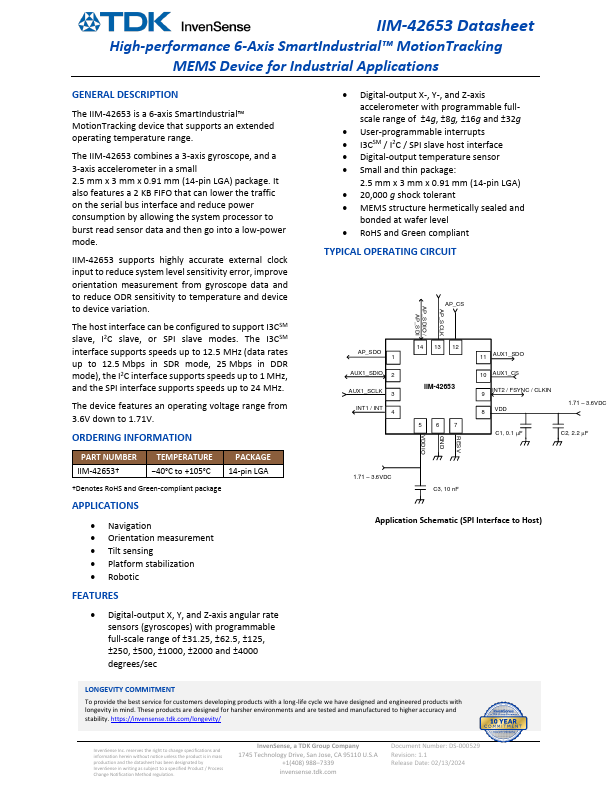

General Description

The IIM-42653 is a 6-axis SmartIndustrial™ MotionTracking device that supports an extended operating temperature range.

The IIM-42653 combines a 3-axis gyroscope, and a 3-axis accelerometer in a small 2.5 mm x 3 mm x 0.91 mm (14-pin LGA) package.

It also

Key Features

a 2 KB FIFO that can lower the traffic on the serial bus interface and reduce power consumption by allowing the system processor to burst read sensor data and then go into a low-power mode. IIM-42653 supports highly accurate external clock input to reduce system level sensitivity error, improve orientation measurement from gyroscope data and to reduce ODR sensitivity to temperature and device to device variation. The host interface can be configured to support I3CSM slave, I2C slave, or SPI sla.
