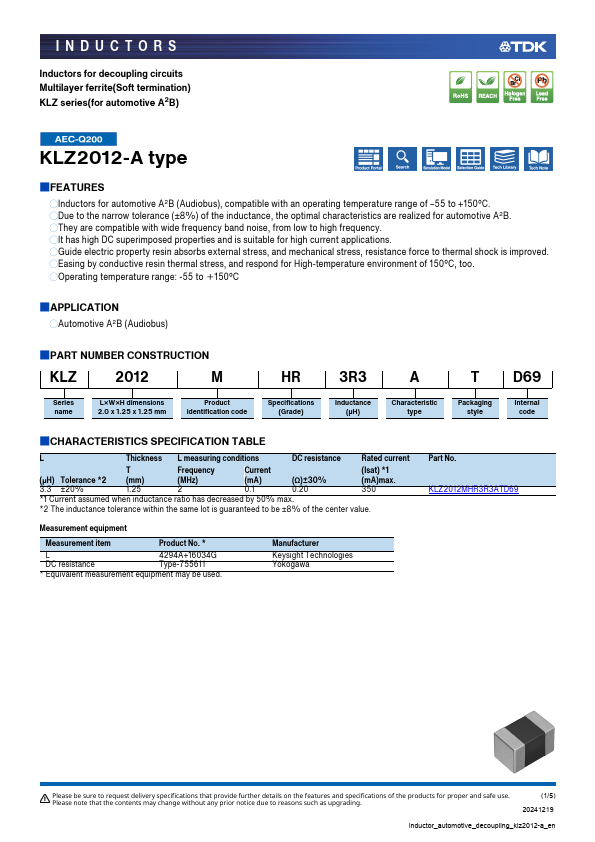

KLZ2012MHR3R3ATD69
FEATURES
̋Inductors for automotive A2B (Audiobus), patible with an operating temperature range of
- 55 to +150°C. ̋Due to the narrow tolerance (±8%) of the inductance, the optimal characteristics are realized for automotive A2B. ̋They are patible with wide frequency band noise, from low to high frequency. ̋It has high DC superimposed properties and is suitable for high current applications. ̋Guide electric property resin absorbs external stress, and mechanical stress, resistance force to thermal shock is improved. ̋Easing by conductive resin thermal stress, and respond for High-temperature environment of 150°C, too. ̋Operating temperature range: -55 to ＋150°C
˙APPLICATION
̋Automotive A2B (Audiobus)
˙PART NUMBER CONSTRUCTION
Series name
L×W×H dimensions 2.0 x 1.25 x 1.25 mm
Product identification code
Specifications (Grade)
3R3
Inductance (μH)
Characteristic type
Packaging style
D69
Internal code
˙CHARACTERISTICS SPECIFICATION TABLE
Thickness L...
