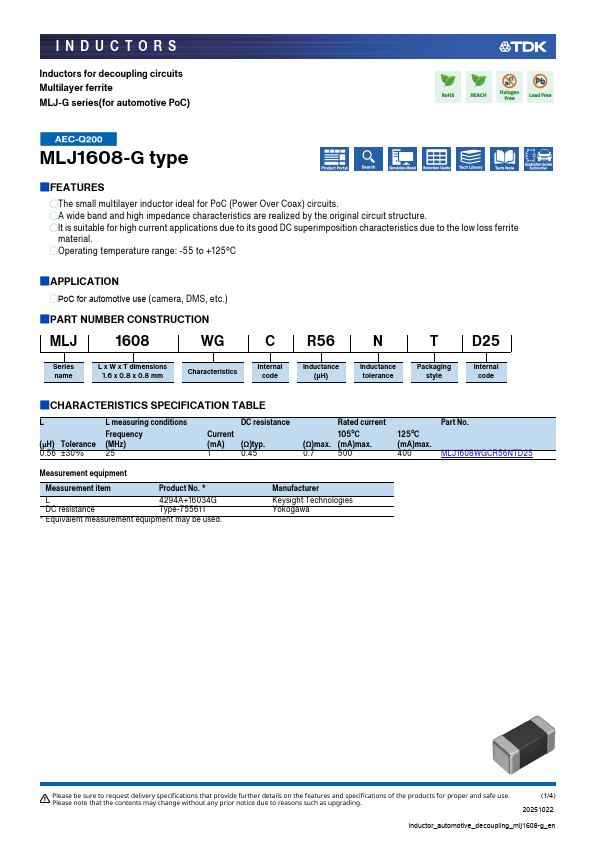

MLJ1608WGCR56NTD25
FEATURES
̋The small multilayer inductor ideal for Po C (Power Over Coax) circuits. ̋A wide band and high impedance characteristics are realized by the original circuit structure. ̋It is suitable for high current applications due to its good DC superimposition characteristics due to the low loss ferrite material. ̋Operating temperature range: -55 to +125°C
˙APPLICATION
̋Po C for automotive use (camera, DMS, etc.)
˙PART NUMBER CONSTRUCTION
Series name
L x W x T dimensions 1.6 x 0.8 x 0.8 mm
Characteristics
Internal code
R56
Inductance (μH)
Inductance tolerance
Packaging style
D25
Internal code
˙CHARACTERISTICS SPECIFICATION TABLE
(μH) Tolerance 0.56 ±30%
L measuring conditions
Frequency (MHz) 25
DC resistance
Current
(m A) (Ω)typ.
Rated current
105°C
(Ω)max. (m A)max.
125°C (m A)max. 400
Part No. MLJ1608WGCR56NTD25
Measurement equipment
Measurement item
Product No.
-...
