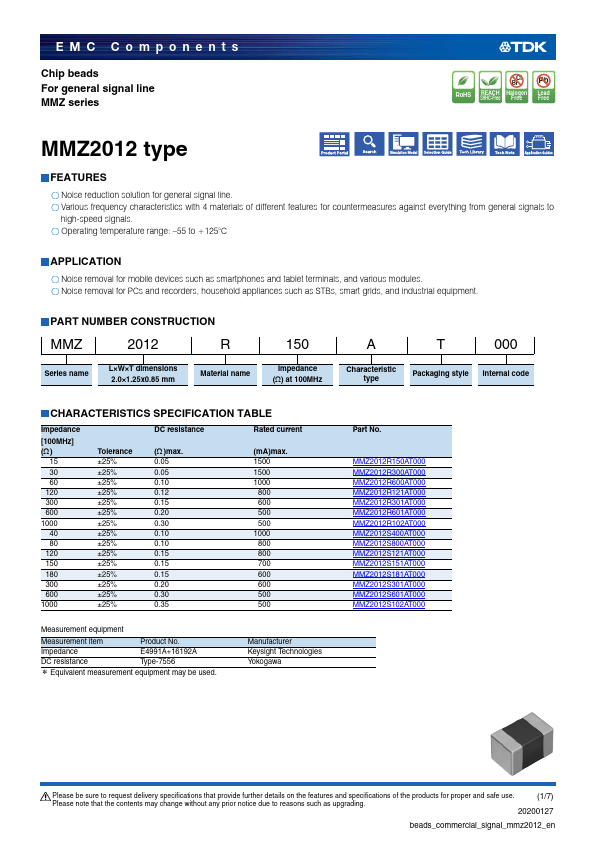

MMZ2012
FEATURES
Noise reduction solution for general signal line. Various frequency characteristics with 4 materials of different features for countermeasures against everything from general signals to high-speed signals. Operating temperature range:
- 55 to +125°C
APPLICATION
Noise removal for mobile devices such as smartphones and tablet terminals, and various modules. Noise removal for PCs and recorders, household appliances such as STBs, smart grids, and industrial equipment.
PART NUMBER CONSTRUCTION
Series name
L×W×T dimensions 2.0×1.25x0.85 mm
Material name
Impedance () at 100MHz
Characteristic type
Packaging style Internal code
CHARACTERISTICS SPECIFICATION TABLE
Impedance
[100MHz] ( )
15 30 60 120 300 600 1000 40 80 120 150 180 300 600 1000
Tolerance ±25% ±25% ±25% ±25% ±25% ±25% ±25% ±25% ±25% ±25% ±25% ±25% ±25% ±25% ±25%
DC resistance
( )max. 0.05 0.05 0.10 0.12 0.15 0.20 0.30 0.10 0.10 0.15 0.15 0.15 0.20 0.30 0.35
Rated current
(m...
