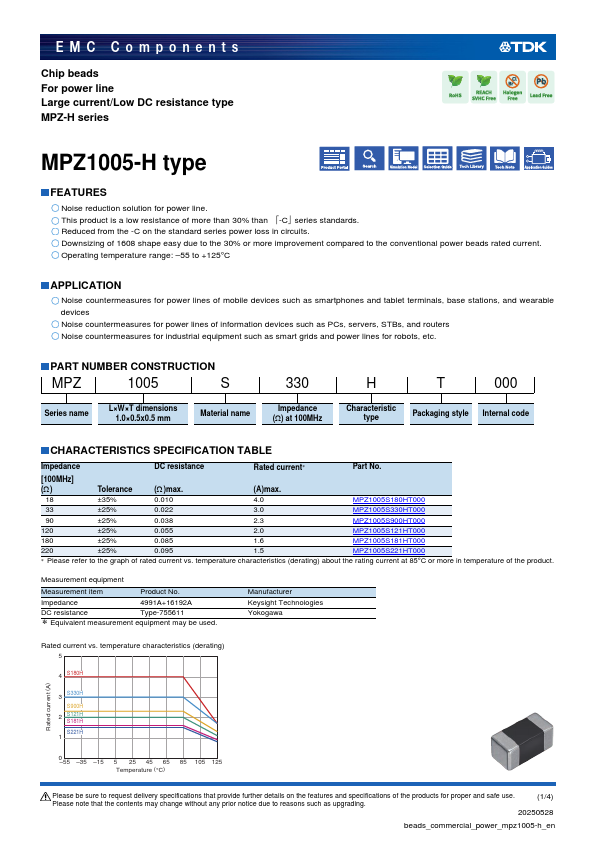

MPZ1005S221HT000
FEATURES
Noise reduction solution for power line. This product is a low resistance of more than 30% than ʮ-Cʯseries standards. Reduced from the -C on the standard series power loss in circuits. Downsizing of 1608 shape easy due to the 30% or more improvement pared to the conventional power beads rated current. Operating temperature range:
- 55 to +125°C
APPLICATION
Noise countermeasures for power lines of mobile devices such as smartphones and tablet terminals, base stations, and wearable devices Noise countermeasures for power lines of information devices such as PCs, servers, STBs, and routers Noise countermeasures for industrial equipment such as smart grids and power lines for robots, etc.
PART NUMBER CONSTRUCTION
Series name
L×W×T dimensions 1.0×0.5x0.5 mm
Material name
Impedance () at 100MHz
Characteristic type
Packaging style Internal code
CHARACTERISTICS SPECIFICATION TABLE
Impedance
DC resistance
Rated current
Part No.
[100MHz]
(...
