NTCG0402

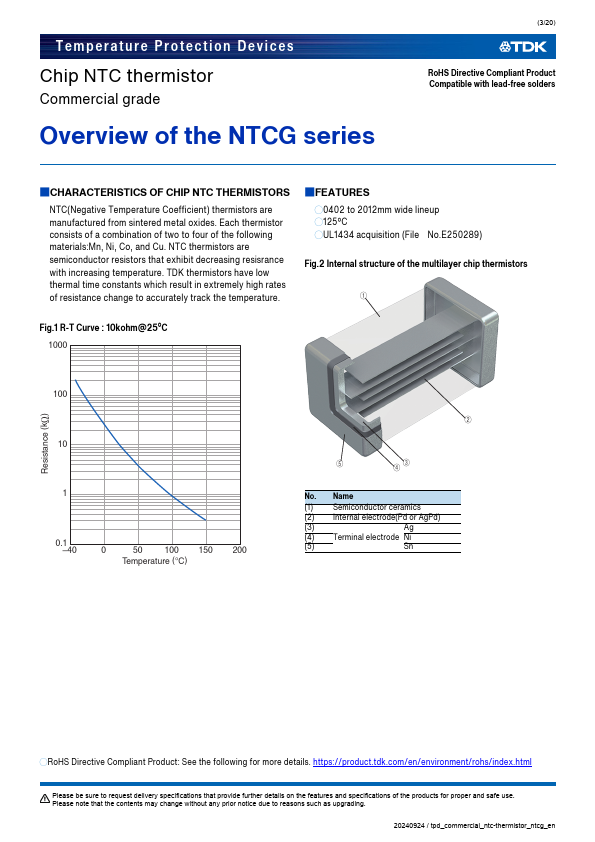

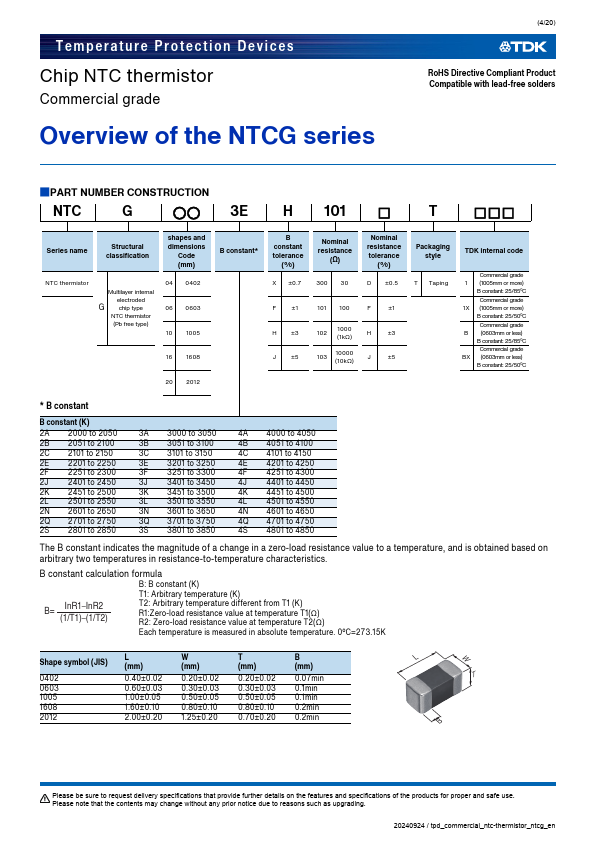

Overview of the NTCG series
(3/20)
Ro HS Directive pliant Product patible with lead-free solders
˙CHARACTERISTICS OF CHIP NTC THERMISTORS
NTC(Negative Temperature Coefficient) thermistors are manufactured from sintered metal oxides. Each thermistor consists of a bination of two to four of the following materials:Mn, Ni, Co, and Cu. NTC thermistors are semiconductor resistors that exhibit decreasing resisrance with increasing temperature. TDK thermistors have low thermal time constants which result in extremely high rates of resistance change to accurately track the temperature.
˙FEATURES
̋0402 to 2012mm wide lineup ̋125°C ̋UL1434 acquisition (File No.E250289)
Fig.2 Internal structure of the multilayer chip thermistors
ᶃ
Fig.1 R-T Curve : 10kohm@25°C 1000
Resistance (kΩ)
- 40
100 150 200
Temperature (°C)
ᶄ
ᶇ
ᶅ ᶆ
No. Name
(1)
Semiconductor ceramics
(2) Internal electrode(Pd or Ag Pd)
(3)
Ag
(4) Terminal electrode Ni
(5)
Sn
̋Ro HS Directive pliant...
