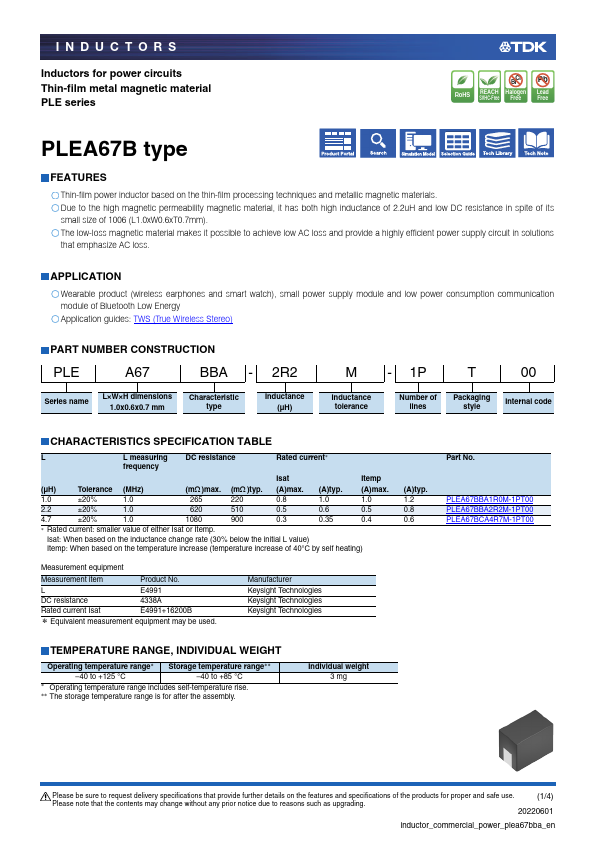

PLEA67B
FEATURES
Thin-film power inductor based on the thin-film processing techniques and metallic magnetic materials. Due to the high magnetic permeability magnetic material, it has both high inductance of 2.2u H and low DC resistance in spite of its small size of 1006 (L1.0x W0.6x T0.7mm). The low-loss magnetic material makes it possible to achieve low AC loss and provide a highly efficient power supply circuit in solutions that emphasize AC loss.
APPLICATION
Wearable product (wireless earphones and smart watch), small power supply module and low power consumption munication module of Bluetooth Low Energy Application guides: TWS (True Wireless Stereo)
PART NUMBER CONSTRUCTION
A67
- 2R2
L×W×H dimensions Series name
1.0x0.6x0.7 mm
Characteristic type
Inductance (µH)
- 1P
Inductance tolerance
Number of lines
Packaging style
Internal code
CHARACTERISTICS SPECIFICATION TABLE
L measuring DC resistance
Rated current frequency
Isat
Itemp
(µH)
Tolerance...
