T5848 - Bottom Port I2S Digital Output Multi-Mode Microphone

General Description

The T5848 is a multi-mode, low noise digital MEMS microphone in a small package.

Key Features

  • SPEC HIGH.

📥 Download Datasheet

Datasheet Details

Part number T5848
Manufacturer TDK Corporation
File Size 1.12 MB
Description Bottom Port I2S Digital Output Multi-Mode Microphone
Datasheet download datasheet T5848 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
T588N Thyristor SCR MODULE Eupec Power Semiconductors
T588N14TOC Thyristor SCR MODULE Eupec Power Semiconductors
T588N14TOF Thyristor SCR MODULE Eupec Power Semiconductors
T589N Thyristor SCR MODULE Eupec Power Semiconductors

Other Datasheets by TDK Corporation

Part Number Description
T5818 Bottom Port PDM Digital Output Multi-Mode Microphone
T5837 Bottom Port PDM Digital Output Multi-Mode Microphone
T5838 Bottom Port PDM Digital Output Multi-Mode Microphone

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

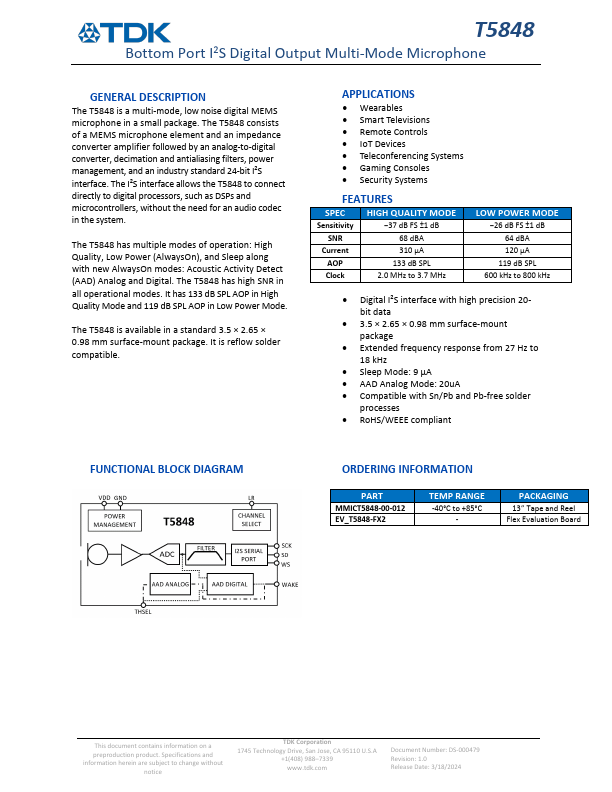

T5848 Bottom Port I2S Digital Output Multi-Mode Microphone GENERAL DESCRIPTION The T5848 is a multi-mode, low noise digital MEMS microphone in a small package. The T5848 consists of a MEMS microphone element and an impedance converter amplifier followed by an analog-to-digital converter, decimation and antialiasing filters, power management, and an industry standard 24-bit I²S interface. The I²S interface allows the T5848 to connect directly to digital processors, such as DSPs and microcontrollers, without the need for an audio codec in the system. The T5848 has multiple modes of operation: High Quality, Low Power (AlwaysOn), and Sleep along with new AlwaysOn modes: Acoustic Activity Detect (AAD) Analog and Digital. The T5848 has high SNR in all operational modes.
