VLCF4018-2 Datasheet | TDK Corporation

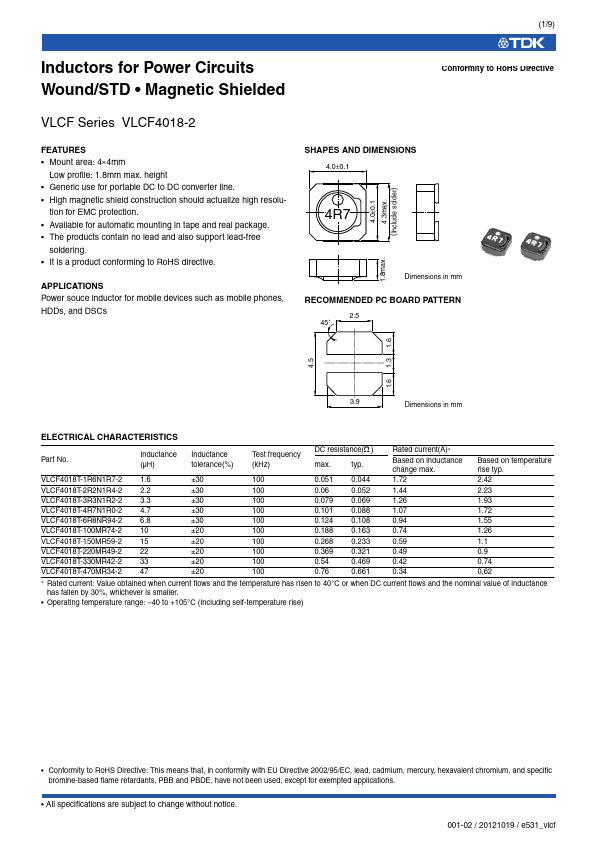

FEATURES - Mount area: 44mm Low profile: 1.8mm max. height - Generic use for portable DC to DC converter line. - High magnetic shield construction should actualize high resolu- tion for EMC protection. - Available for automatic mounting in tape and real package. - The products contain no lead and also support lead-free soldering. - It is a product conforming to Ro HS directive. APPLICATIONS Power souce inductor for mobile devices such as mobile phones, HDDs, and DSCs 1.8max. 4.0±0.1 4.3max. (Include solder) SHAPES AND DIMENSIONS 4.0±0.1 4R7 Dimensions in mm REMENDED PC BOARD PATTERN 2.5 45˚ 1.6 1.3 1.6 Dimensions in mm ELECTRICAL CHARACTERISTICS Part No. Inductance Inductance (µH) tolerance(%) Test frequency (k Hz) DC resistance( ) max. typ. Rated current(A) Based on inductance change max. Based on temperature rise typ. VLCF4018T-1R6N1R7-2 1.6 ±30 0.051 0.044 VLCF4018T-2R2N1R4-2...
