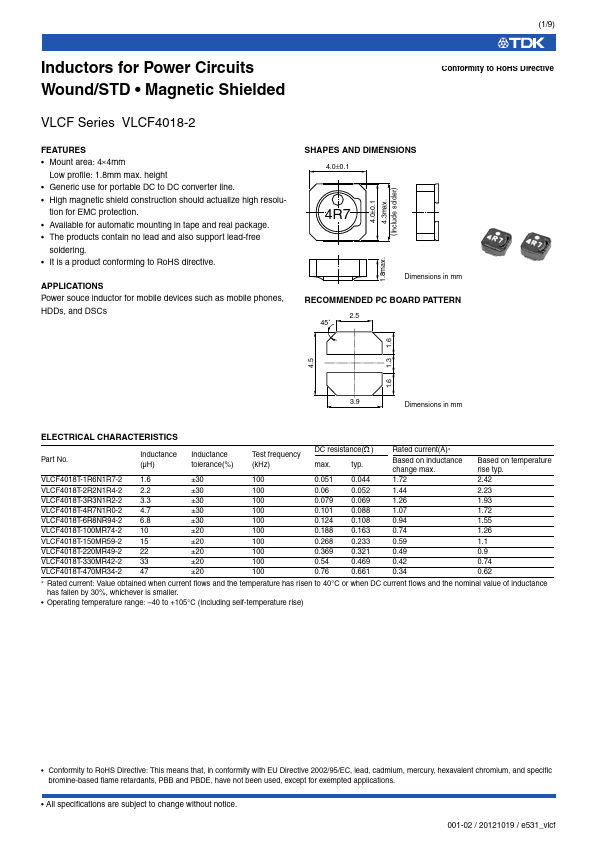

FEATURES

● Mount area: 44mm Low profile: 1.8mm max. height
● Generic use for portable DC to DC converter line.
● High magnetic shield construction should actualize high resolu- tion for EMC protection.
● Available for automatic mounting in tape and real package.
● The products contain no lead and also support lead-free soldering.
● It is a product conforming to RoHS directive.

APPLICATIONS

Power souce inductor for mobile devices such as mobile phones, HDDs, and DSCs 1.8max. 4.0±0.1 4.3max. (Include solder) SHAPES AND DIMENSIONS 4.0±0.1 4R7 Dimensions in mm RECOMMENDED PC BOARD PATTERN 2.5 45˚ 1.6 1.3 1.6 4.5 3.9 Dimensions in mm

ELECTRICAL CHARACTERISTICS

Part No. Inductance Inductance (µH) tolerance(%) Test frequency (kHz) DC resistance( ) max. typ. Rated current(A) Based on inductance change max. Based on temperature rise typ. VLCF4018T-1R6N1R7-2 1.6 ±30 100 0.051 0.044 1.72 2.42 VLCF4018T-2R2N1R4-2 2.2 ±30 100 0.06 0.052 1.44 2.23 VLCF4018T-3R3N1R2-2 3.3 ±30 100 0.079 0.069 1.26...
