TE Connectivity RT444012
Power PCB Relay
| Part No. | RT444012 |
|---|---|
| Datasheet | RT444012 Download |
| Manufacturer |  TE Connectivity |
| Description | Power PCB Relay |
| Buy | Stock & Price |
APPLICATIONS

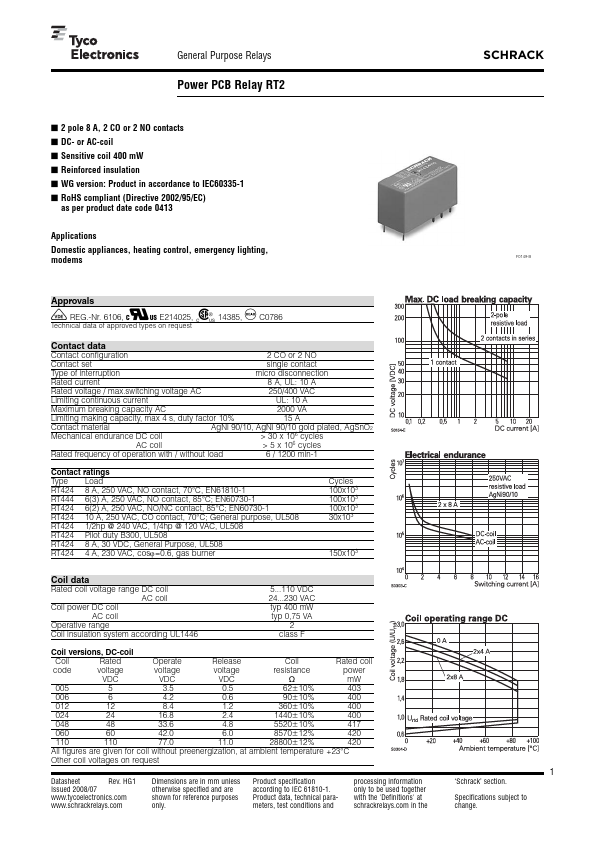

Domestic appliances, heating control, emergency lighting, modems F0149-B Approvals V Z b B REG.-Nr. 6106, E214025, 14385, C0786 Technical data of approved types on request Contact data Contact configuration 2 CO or 2 NO Contact set single contact Type of interruption micro disconnection Rated current 8 A, UL: 10 A Rated voltage / max.switching voltage AC 250/400 VAC Limiting continuous current UL: 10 A Maximum breaking capacity AC 2000 VA Limiting making capacity, max 4 s, duty factor 10% 15 A Contact material AgNi 90/10, AgNi 90/10 gold plated, AgSnO2 Mechanical endurance DC coil > 30 x 106 cycles AC coil > 5 x 106 cycles Rated frequency of operation with / without load 6 / 1200 min-1 Contact ratings Type Load RT424 8 A, 250 VAC, NO contact, 70°C, EN61810-1 RT444 6(3) A, 250 VAC, NO contact, 85°C; EN60730-1 RT424 6(2) A, 250 VAC, NO/NC contact, 85°C; EN60730-1 RT424 10 A, 250 VAC, CO contact, 70°C; General purpose, UL508 RT424 1/2hp @ 240 VAC, 1/4hp @ 120 VAC, UL508 RT424...
