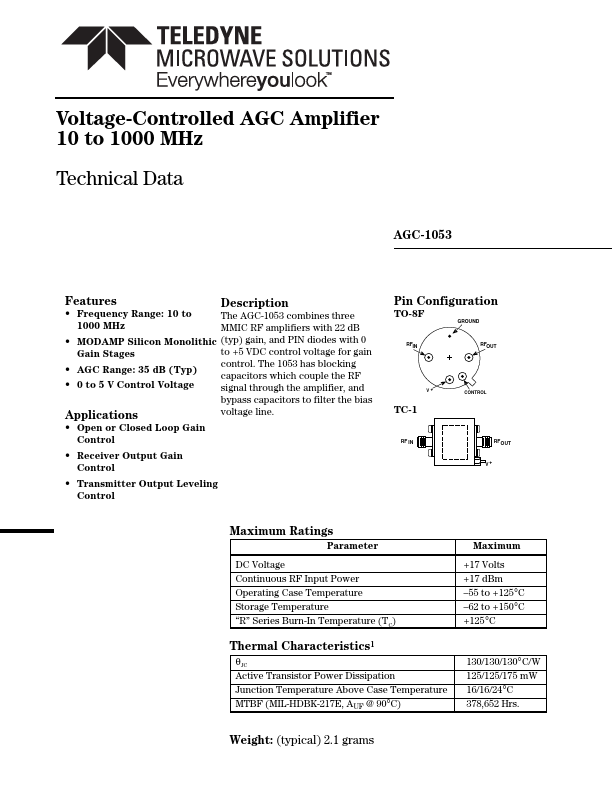

AGC-1053 Overview
Description
Frequency Range: 10 to The AGC-1053 combines three 1000 MHz MMIC RF amplifiers with 22 dB - MODAMP Silicon Monolithic (typ) gain, and PIN diodes with 0 Gain Stages to +5 VDC control voltage for gain - AGC Range: 35 dB (Typ) control. The 1053 has blocking capacitors which couple the RF - 0 to 5 V Control Voltage signal through the amplifier, and bypass capacitors to filter the bias.
