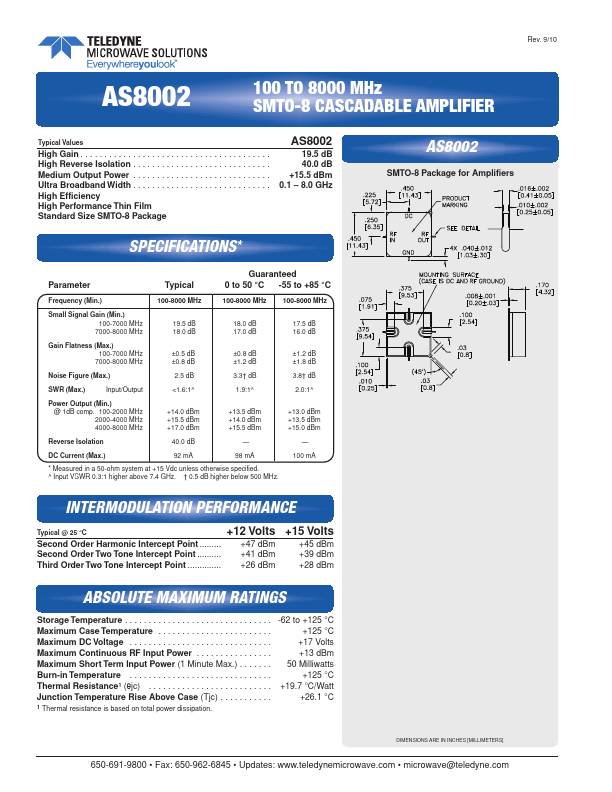

    Rev. 9/10 AS8002 100 TO 8000 MHz SMTO-8 CASCADABLE AMPLIFIER Typical Values High Gain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . High Reverse Isolation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Medium Output Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ultra Broadband Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . High Efficiency High Performance Thin Film Standard Size SMTO-8 Package AS8002 19.5 dB 40.0 dB +15.5 dBm 0.1 – 8.0 GHz SPECIFICATIONS* Parameter Typical Guaranteed 0 to 50 °C -55 to +85 °C Frequency (Min.) 100-8000 MHz 100-8000 MHz 100-8000 MHz Small Signal Gain (Min.) 100-7000 MHz 7000-8000 MHz Gain Flatness (Max.) 100-7000 MHz 7000-8000 MHz 19.5 dB 18.0 dB ±0.5 dB ±0.8 dB 18.
