PE9354 - SPDT High Power RF Switch

Description

The PE9354 SPDT high power UltraCMOS® RF switch is designed to cover a broad range of applications from near DC to 3000 MHz.

This single-supply reflective switch integrates on-board CMOS control logic driven by a simple, single-pin CMOS and TTL compatible control input.

Features

  • Single +3V power supply.
  • Low insertion loss: 0.55 dB @ 2000 MHz.
  • High isolation of 30 dB @ 2000 MHz.
  • Typical input P1dB compression point of +31 dBm.
  • 100 krad(Si) total dose.
  • Single-pin CMOS or TTL logic control Figure 2. Package Type 8-lead CFP DOC-02108 Table 1. AC Electrical Specifications @.
  • 40 °C to +85 °C, VDD = 3.0V (ZS = ZL = 50Ω)1 Parameter Condition Min Typ Operation frequency2 DC Insertion loss 2000 MHz 0.55 Is.

📥 Download Datasheet

Datasheet Details

Part number PE9354
Manufacturer TELEDYNE
File Size 2.04 MB
Description SPDT High Power RF Switch
Datasheet download datasheet PE9354 Datasheet

📁 Similar Datasheet

  • PE9354 - SPDT High Power UltraCMOS RF Switch (Peregrine Semiconductor)
  • PE9301 - 3500 MHz Low Power UltraCMOS Divide-by-2 Prescaler Rad-hard for Space Applications (Peregrine Semiconductor)
  • PE9303 - 3.5 GHz Low Power CMOS Divide-by-8 Prescaler For RAD-Hard Applications (Peregrine Semiconductor)
  • PE9304 - Low Power Divide-by-2 Prescaler (Peregrine Semiconductor)
  • PE9308 - 10.0 GHz Low Power UltraCMOS (Peregrine Semiconductor)
  • PE9309 - 3.0 - 13.5 GHz Low Power UltraCMOS Divide-by-4 Prescaler (Peregrine Semiconductor)
  • PE9311 - high-performance static UltraCMOS prescaler (Peregrine Semiconductor)
  • PE9312 - Divide-by-4 Prescaler Radiation Tolerant (Peregrine Semiconductor)
  • PE9313 - 1500 MHz Low Power UltraCMOS Divide-by-8 Prescaler RAD hard (Peregrine Semiconductor)
  • PE90F120 - THYRISTOR MODULE (ETC)
Other Datasheets by TELEDYNE
  • PE9304 - Low Power Divide-by-2 Prescaler
  • PE9313 - high-performance static UltraCMOS prescaler
  • PE95421 - SPDT RF Switch
  • PE9601 - Integer-N PLL Radiation Tolerant
  • PE9702 - Integer-N PLL Radiation Tolerant
  • PE97240 - Integer-N Frequency Synthesizer
  • PE97640 - Delta-Sigma Modulated Fractional-N Frequency Synthesizer
  • PE99155 - Hi-Rel 10A DC-DC Converter

Full PDF Text Transcription

Click to expand full text

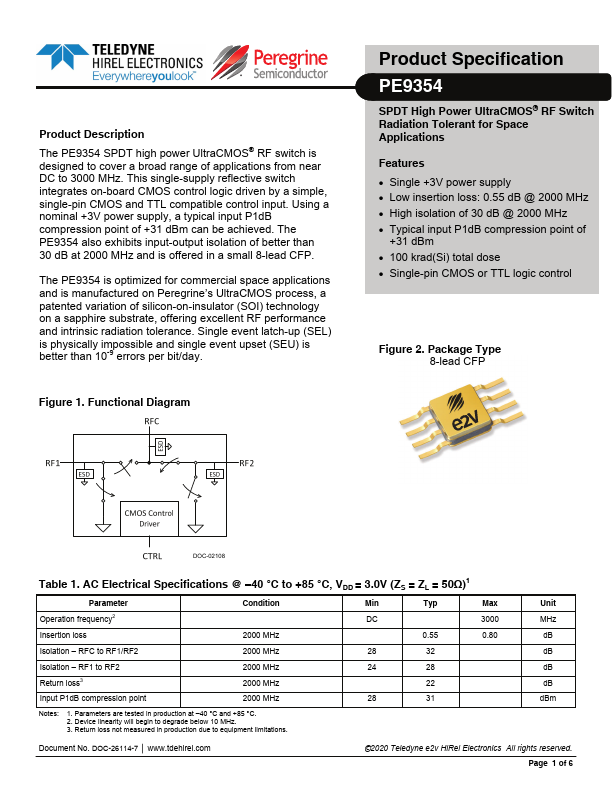

Product Description The PE9354 SPDT high power UltraCMOS® RF switch is designed to cover a broad range of applications from near DC to 3000 MHz. This single-supply reflective switch integrates on-board CMOS control logic driven by a simple, single-pin CMOS and TTL compatible control input. Using a nominal +3V power supply, a typical input P1dB compression point of +31 dBm can be achieved. The PE9354 also exhibits input-output isolation of better than 30 dB at 2000 MHz and is offered in a small 8-lead CFP. The PE9354 is optimized for commercial space applications and is manufactured on Peregrine’s UltraCMOS process, a patented variation of silicon-on-insulator (SOI) technology on a sapphire substrate, offering excellent RF performance and intrinsic radiation tolerance.
