Peregrine’s PE9601 is a high-performance integer-N PLL capable of frequency synthesis up to 2200 MHz.

The device is designed for superior phase noise performance while providing an order of magnitude reduction in current consumption, when compared with existing commercial space PLLs.

Features

a ÷10/11 dual modulus prescaler, counters and a phase comparator as shown in Figure 1. Counter values are programmable through either a serial or parallel interface and can also be directly hardwired. The PE9601 is optimized for commercial space.

Datasheet Details

Part number	PE9601
Manufacturer	TELEDYNE
File Size	2.87 MB
Description	Integer-N PLL Radiation Tolerant
Datasheet	PE9601 Datasheet

📁 Similar Datasheet

PE9664-001 - LCD Module (Powertip Technology)

PE9665WRF-002-I08Q - LCD Module (POWERTIP)

PE90F120 - THYRISTOR MODULE (ETC)

PE90F120 - THYRISTOR MODULE (SanRex Corporation)

PE90F160 - THYRISTOR MODULE (ETC)

PE90F160 - Thyristor (SanRex Corporation)

PE90F40 - THYRISTOR MODULE (ETC)

PE90F40 - THYRISTOR MODULE (SanRex Corporation)

PE90F80 - THYRISTOR MODULE (ETC)

PE90F80 - THYRISTOR MODULE (SanRex Corporation)

Full PDF Text Transcription

Click to expand full text

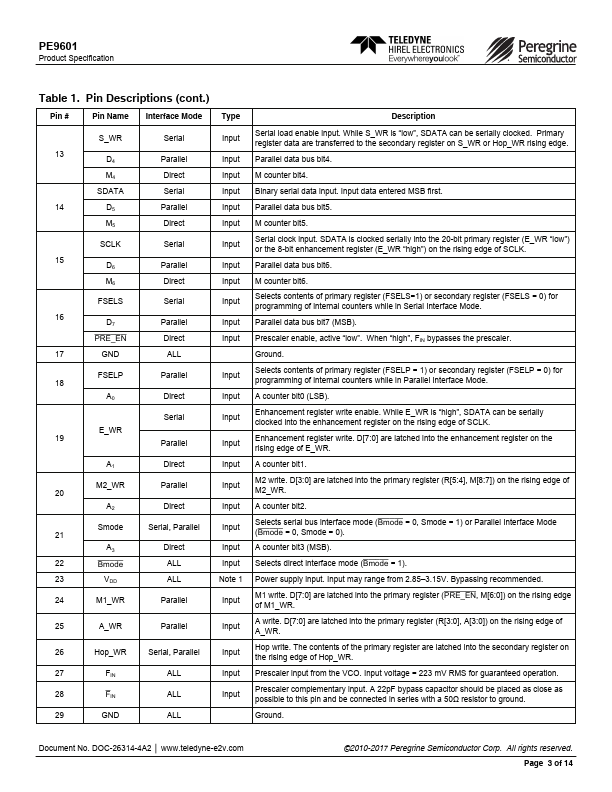

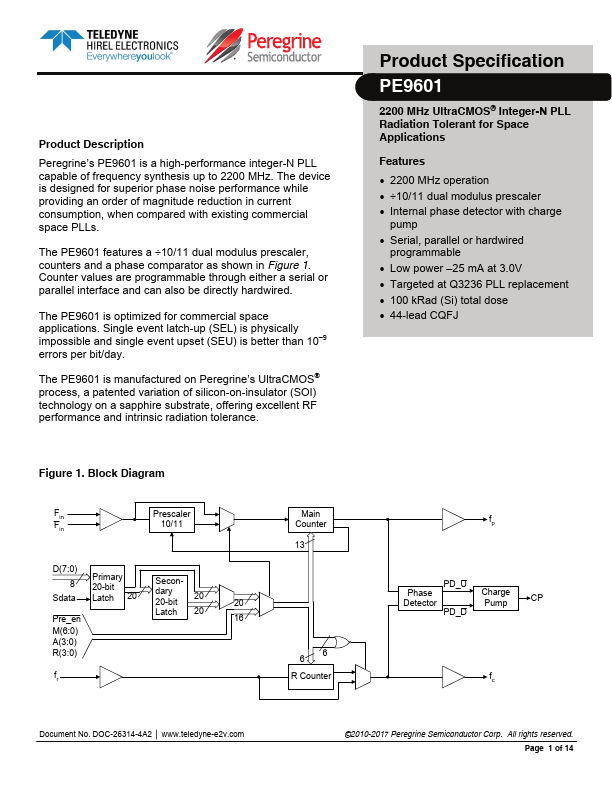

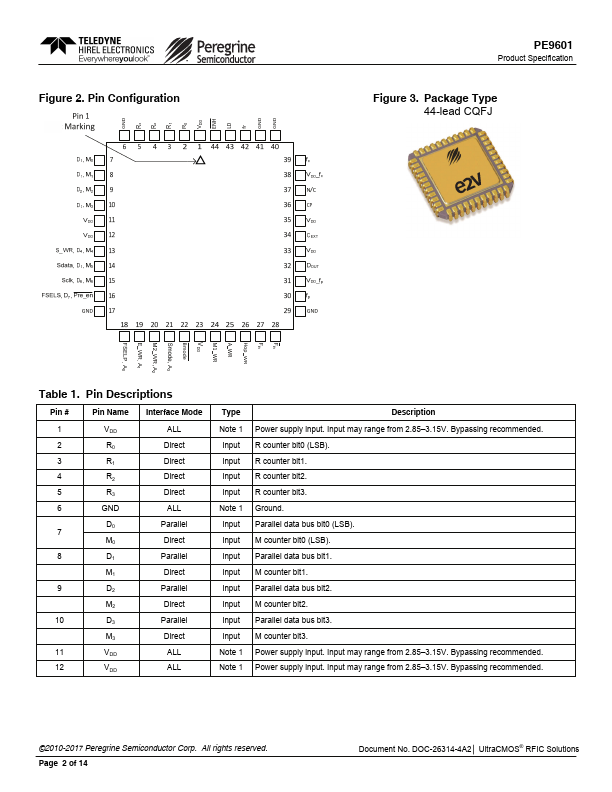

Product Description Peregrine’s PE9601 is a high-performance integer-N PLL capable of frequency synthesis up to 2200 MHz. The device is designed for superior phase noise performance while providing an order of magnitude reduction in current consumption, when compared with existing commercial space PLLs. The PE9601 features a ÷10/11 dual modulus prescaler, counters and a phase comparator as shown in Figure 1. Counter values are programmable through either a serial or parallel interface and can also be directly hardwired. The PE9601 is optimized for commercial space applications. Single event latch-up (SEL) is physically impossible and single event upset (SEU) is better than 10–9 errors per bit/day.
