PE99155 - Hi-Rel 10A DC-DC Converter

Description

The PE99155 is a radiation tolerant point-of-load buck regulator delivering high efficiency at VIN = 5V and output currents up to 10A continuous.

This single-chip solution is perfect for Hi-Rel applications and delivers peak efficiency exceeding 93%.

Features

  •  Up to 10A continuous.
  •  Output voltage range from 1.0V to 3.6V by external select resistors.
  •  Input voltage range 4.6V.
  • 6.0V.
  •  Current mode control, pulse-by-pulse current limit, current sharing enabled and (N+K) redundancy compatible shutdown mode.
  •  SYNC function, 100 kHz to 5 MHz lock range with selectable 500 kHz / 1 MHz free running frequency.
  •  Shutdown pin, power good output pin for supply sequencing.
  •  Better than 1% typical initial accuracy (+25 °.

📥 Download Datasheet

Datasheet Details

Part number PE99155
Manufacturer TELEDYNE
File Size 2.27 MB
Description Hi-Rel 10A DC-DC Converter
Datasheet download datasheet PE99155 Datasheet

📁 Similar Datasheet

  • PE99155 - Hi-Rel 10A DC-DC Converter (Peregrine Semiconductor)
  • PE99151 - Monolithic Point-of-Load Synchronous Buck Regulator (Peregrine Semiconductor)
  • PE99151DIE - Monolithic Point-of-Load Synchronous Buck Regulator (Peregrine Semiconductor)
  • PE99153 - Hi-Rel 6A DC-DC Converter (Peregrine Semiconductor)
  • PE99153DIE - Hi-Rel 6A DC-DC Converter (Peregrine Semiconductor)
  • PE9926 - N-Channel Enhancement Mode Power MOSFET (semi one)
  • PE90F120 - THYRISTOR MODULE (ETC)
  • PE90F120 - THYRISTOR MODULE (SanRex Corporation)
  • PE90F160 - THYRISTOR MODULE (ETC)
  • PE90F160 - Thyristor (SanRex Corporation)
Other Datasheets by TELEDYNE
  • PE9304 - Low Power Divide-by-2 Prescaler
  • PE9313 - high-performance static UltraCMOS prescaler
  • PE9354 - SPDT High Power RF Switch
  • PE95421 - SPDT RF Switch
  • PE9601 - Integer-N PLL Radiation Tolerant
  • PE9702 - Integer-N PLL Radiation Tolerant
  • PE97240 - Integer-N Frequency Synthesizer
  • PE97640 - Delta-Sigma Modulated Fractional-N Frequency Synthesizer

Full PDF Text Transcription

Click to expand full text

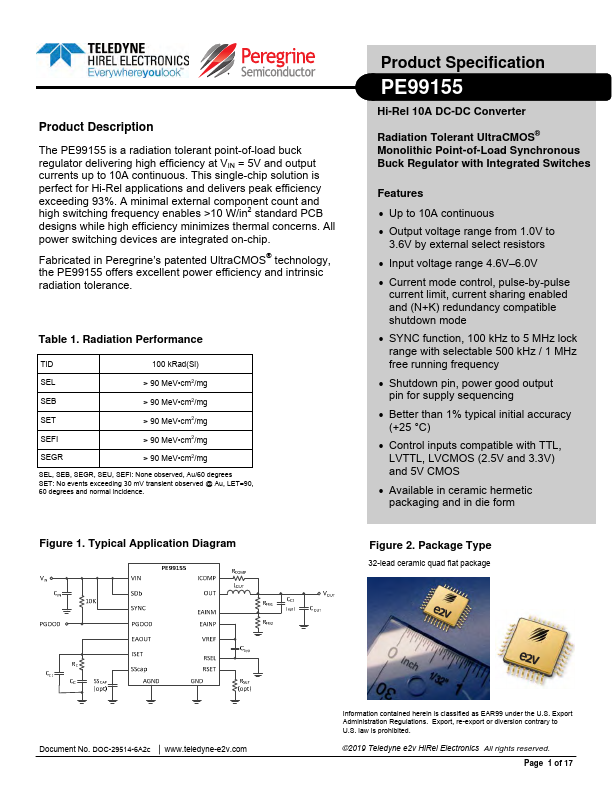

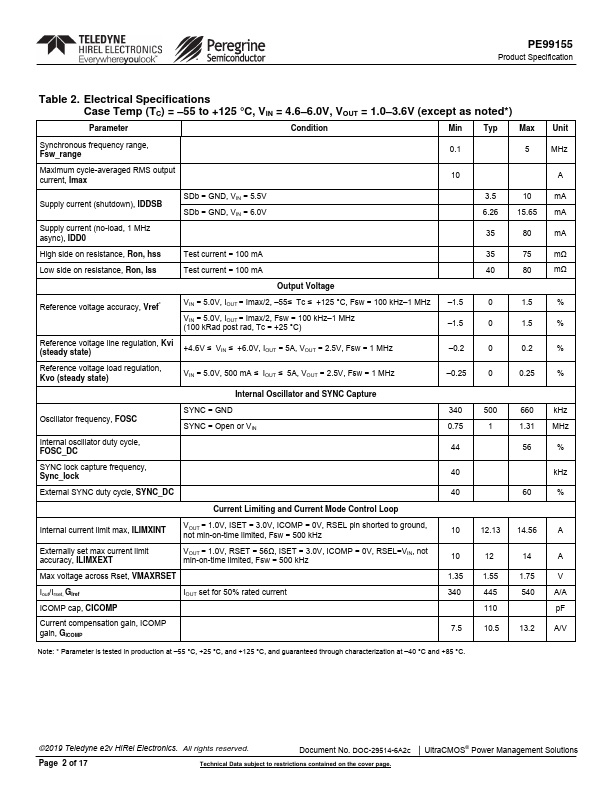

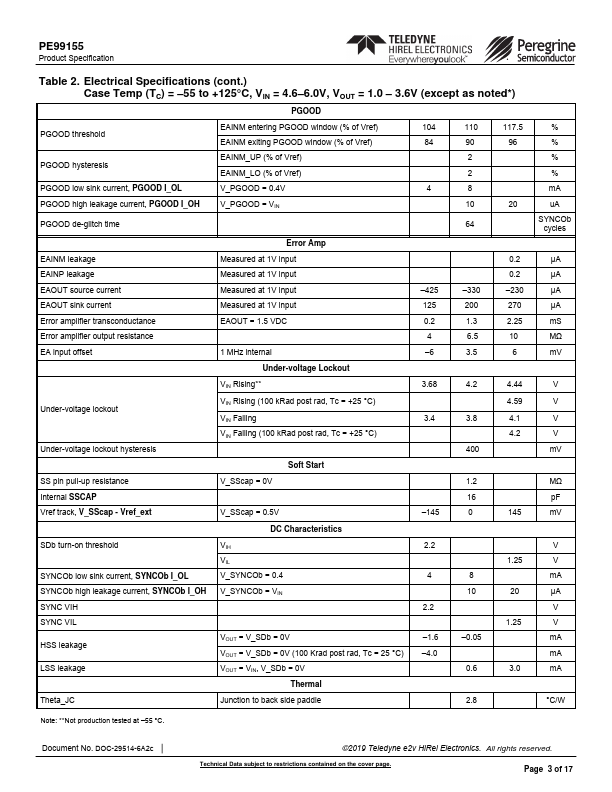

Product Description The PE99155 is a radiation tolerant point-of-load buck regulator delivering high efficiency at VIN = 5V and output currents up to 10A continuous. This single-chip solution is perfect for Hi-Rel applications and delivers peak efficiency exceeding 93%. A minimal external component count and high switching frequency enables >10 W/in2 standard PCB designs while high efficiency minimizes thermal concerns. All power switching devices are integrated on-chip. Fabricated in Peregrine’s patented UltraCMOS® technology, the PE99155 offers excellent power efficiency and intrinsic radiation tolerance. Table 1.
