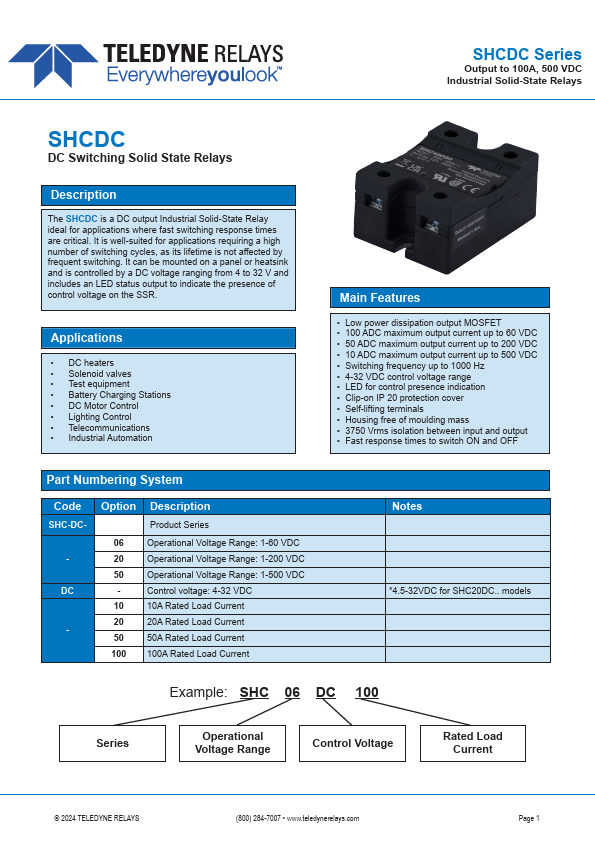

SHC20DC20
Overview
The SHCDC is a DC output Industrial Solid-State Relay ideal for applications where fast switching response times are critical. It is well-suited for applications requiring a high number of switching cycles, as its lifetime is not affected by frequent switching.
- Low power dissipation output MOSFET
- 100 ADC maximum output current up to 60 VDC
- 50 ADC maximum output current up to 200 VDC
- 10 ADC maximum output current up to 500 VDC
- Switching frequency up to 1000 Hz
- 4-32 VDC control voltage range
- LED for control presence indication
- Clip-on IP 20 protection cover
- Self-lifting terminals
- Housing free of moulding mass
