TDG650E30BSP - Bottom-side cooled 650 V E-mode GaN transistor

Description

The TDG650E30BSP is an enhancement mode GaN-onsilicon power transistor based on GaN Systems Technology.

The properties of GaN allow for high current, high voltage breakdown and high switching frequency.

Features

  • 650 V enhancement mode power transistor.
  • Bottom-side cooled configuration.
  • RDS(on) = 50 mΩ.
  • IDS(max) = 30 A.
  • Ultra-low FOM Island Technology® die.
  • Low inductance GaNPX® package.
  • Easy gate drive requirements (0 V to 6 V).
  • Transient tolerant gate drive (-20 V / +10V).
  • Very high switching frequency (> 100 MHz).
  • Fast and controllable fall and rise times.
  • Reverse current capability.
  • Zero rever.

📥 Download Datasheet

Datasheet Details

Part number TDG650E30BSP
Manufacturer TELEDYNE
File Size 1.52 MB
Description Bottom-side cooled 650 V E-mode GaN transistor
Datasheet download datasheet TDG650E30BSP Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by TELEDYNE

Part Number Description
TDG650E60 Bottom- or Top-side Cooled 650V E-mode GaN FET
TDG650E601TSP Space GaN E-mode Transistor
TDG650E602TSP Space GaN E-mode Transistor
TDG100E90BEP 100V E-mode GaN transistor
TDGD271 Isolated Gate Drivers

Full PDF Text Transcription

Click to expand full text

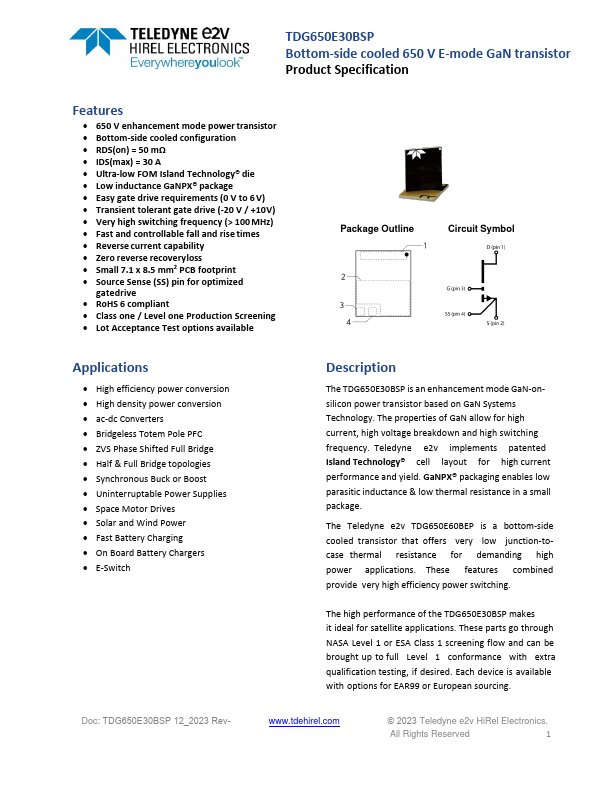

TDG650E30BSP Bottom-side cooled 650 V E-mode GaN transistor Product Specification Features • 650 V enhancement mode power transistor • Bottom-side cooled configuration • RDS(on) = 50 mΩ • IDS(max) = 30 A • Ultra-low FOM Island Technology® die • Low inductance GaNPX® package • Easy gate drive requirements (0 V to 6 V) • Transient tolerant gate drive (-20 V / +10V) • Very high switching frequency (> 100 MHz) • Fast and controllable fall and rise times • Reverse current capability • Zero reverse recoveryloss • Small 7.1 x 8.
