TDLNA0430EP - GaAs Ultra Low Noise Amplifier

Description

The TDLNA0430EP is a broadband, ultra-low Noise Amplifier (LNA) providing high gain and linearity.

Features

  • Small signal gain @ 1800 MHz: 21.5 dB.
  • NF @ 1,800 MHz: 0.35 dB.
  • OP1dB @ 1,800 MHz: 12 dBm.
  • OIP3dB @ 1,800 MHz: 30 dBm.
  • 5 V Typical operating voltage.
  • Operating frequency: 0.03 to 3.0 GHz 2.0.

📥 Download Datasheet

Datasheet Details

Part number TDLNA0430EP
Manufacturer TELEDYNE
File Size 1.34 MB
Description GaAs Ultra Low Noise Amplifier
Datasheet download datasheet TDLNA0430EP Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TDL2 UHF Transparent Data Link transceiver Radiometrix
TDL2A UHF Transparent Data Link transceiver Radiometrix

Other Datasheets by TELEDYNE

Part Number Description
TDLNA002093 Ultra-Low Noise Amplifier
TDLNA002093SEP Ultra-Low Noise Amplifier
TDLNA2050EP GaAs Ultra Low Noise Amplifier
TDLNA2626SEP 17 - 23 GHz Low Noise Amplifier
TDLNA2628SEP 22 - 31.5 GHz Low Noise Amplifier

Full PDF Text Transcription

Click to expand full text

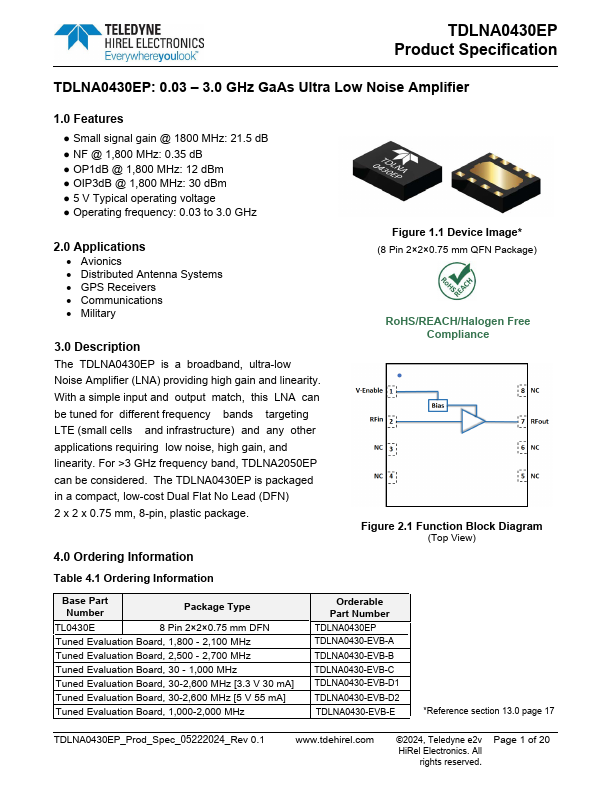

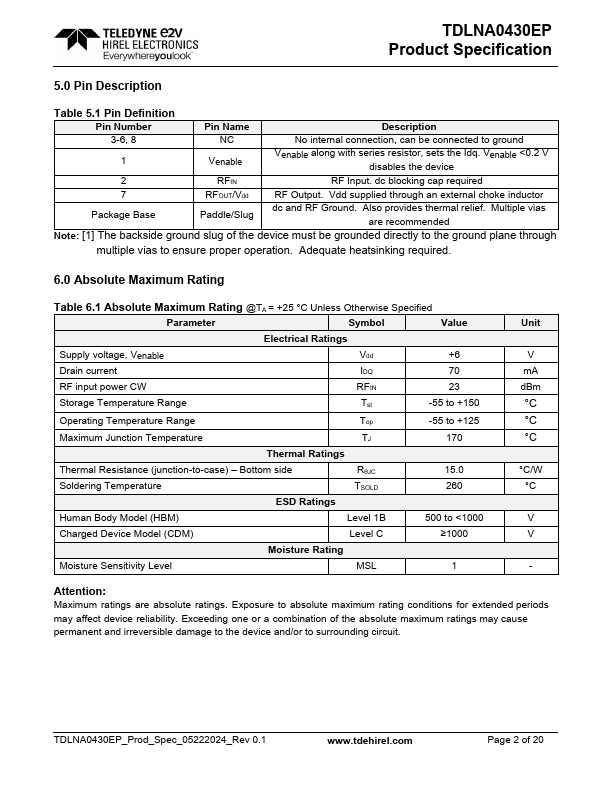

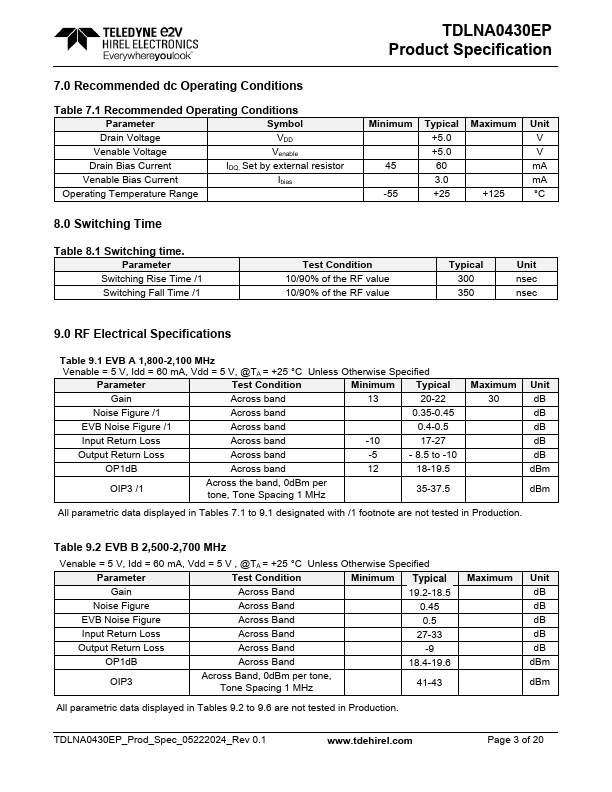

TDLNA0430EP P Spe TDLNA0430EP: 0.03 – 3.0 GHz GaAs Ultra Low Noise Amplifier 1.0 Features ● Small signal gain @ 1800 MHz: 21.5 dB ● NF @ 1,800 MHz: 0.35 dB ● OP1dB @ 1,800 MHz: 12 dBm ● OIP3dB @ 1,800 MHz: 30 dBm ● 5 V Typical operating voltage ● Operating frequency: 0.03 to 3.0 GHz 2.0 Applications • Avionics • Distributed Antenna Systems • GPS Receivers • Communications • Military 3.0 Description The TDLNA0430EP is a broadband, ultra-low Noise Amplifier (LNA) providing high gain and linearity. With a simple input and output match, this LNA can be tuned for different frequency bands targeting LTE (small cells and infrastructure) and any other applications requiring low noise, high gain, and linearity. For >3 GHz frequency band, TDLNA2050EP can be considered.
