TE-99

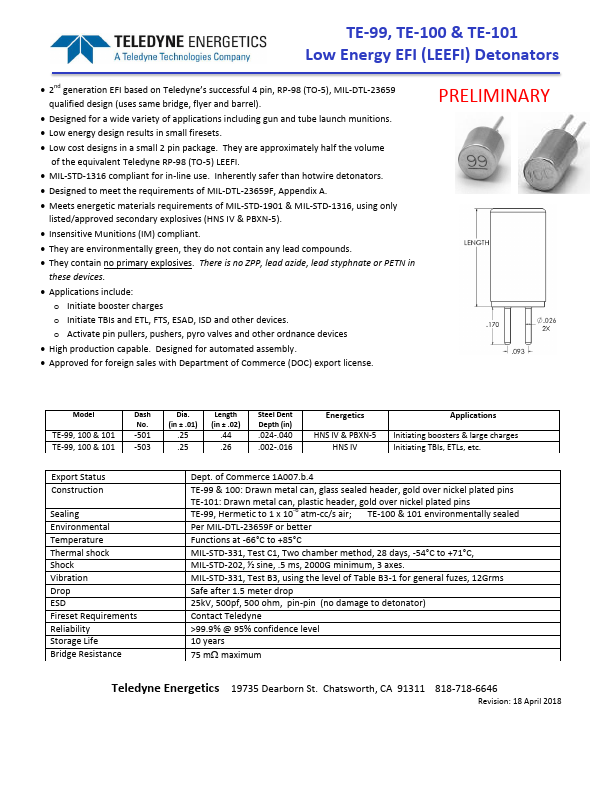

TE-99, TE-100 & TE-101 Low Energy EFI (LEEFI) Detonators
- 2nd generation EFI based on Teledyne’s successful 4 pin, RP-98 (TO-5), MIL-DTL-23659 qualified design (uses same bridge, flyer and barrel).
- Designed for a wide variety of applications including gun and tube launch munitions.
- Low energy design results in small firesets.
- Low cost designs in a small 2 pin package. They are approximately half the volume of the equivalent Teledyne RP-98 (TO-5) LEEFI.
- MIL-STD-1316 pliant for in-line use. Inherently safer than hotwire detonators.
- Designed to meet the requirements of MIL-DTL-23659F, Appendix A.
- Meets energetic materials requirements of MIL-STD-1901 & MIL-STD-1316, using only listed/approved secondary explosives (HNS IV & PBXN-5).
- Insensitive Munitiopnles a(Is Me)qcuoomtpeliant.
- They are environmentally green, they do not contain any lead pounds.
- They contain no primary explosives. There is no ZPP, lead azide, lead styphnate or PETN in these devices.
- Applications...
