TTS14VS - Temperature Compensated Crystal Oscillator

Download the TTS14VS datasheet PDF. This datasheet also covers the TTS14NS variant, as both devices belong to the same temperature compensated crystal oscillator family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TTS14NS-TEW.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number TTS14VS
Manufacturer TEW
File Size 91.56 KB
Description Temperature Compensated Crystal Oscillator
Datasheet download datasheet TTS14VS Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TTS18NSH High precisionTemperature Compensated Crystal Oscillator DENPA
TTS18VSH High precisionTemperature Compensated Crystal Oscillator DENPA
TTS1A103 NTC Thermistor TKS
TTS1A104 NTC Thermistor TKS
TTS1A223 NTC Thermistor TKS

Other Datasheets by TEW

Part Number Description
TTS14NS Temperature Compensated Crystal Oscillator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

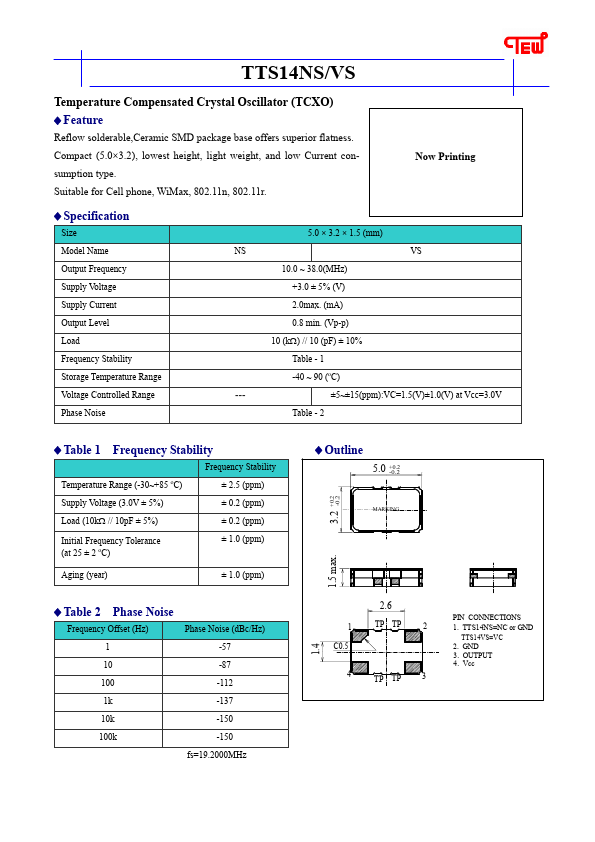

TTS14NS/VS Temperature Compensated Crystal Oscillator (TCXO) ♦Feature Reflow solderable,Ceramic SMD package base offers superior flatness. Compact (5.0×3.2), lowest height, light weight, and low Current consumption type. Suitable for Cell phone, WiMax, 802.11n, 802.11r. Now Printing ♦Specification Size 5.0 × 3.2 × 1.5 (mm) Model Name NS VS Output Frequency 10.0 ~ 38.0(MHz) Supply Voltage +3.0 ± 5% (V) Supply Current 2.0max. (mA) Output Level Load 0.8 min. (Vp-p) 10 (kΩ) // 10 (pF) ± 10% Frequency Stability Storage Temperature Range Voltage Controlled Range Table - 1 -40 ~ 90 (oC) --- ±5~±15(ppm):VC=1.5(V)±1.0(V) at Vcc=3.0V Phase Noise Table - 2 ♦Table 1 Frequency Stability Temperature Range (-30~+85 oC) Frequency Stability ± 2.5 (ppm) Supply Voltage (3.
