TVR10331 - Zinc Oxide Varistor

This page provides the datasheet information for the TVR10331, a member of the TVR14431 Zinc Oxide Varistor family.

Product Overview

TKS

Part number	TVR10331
Manufacturer	TKS
File Size	1.04 MB
Description	Zinc Oxide Varistor
Datasheet	TVR10331 Datasheet

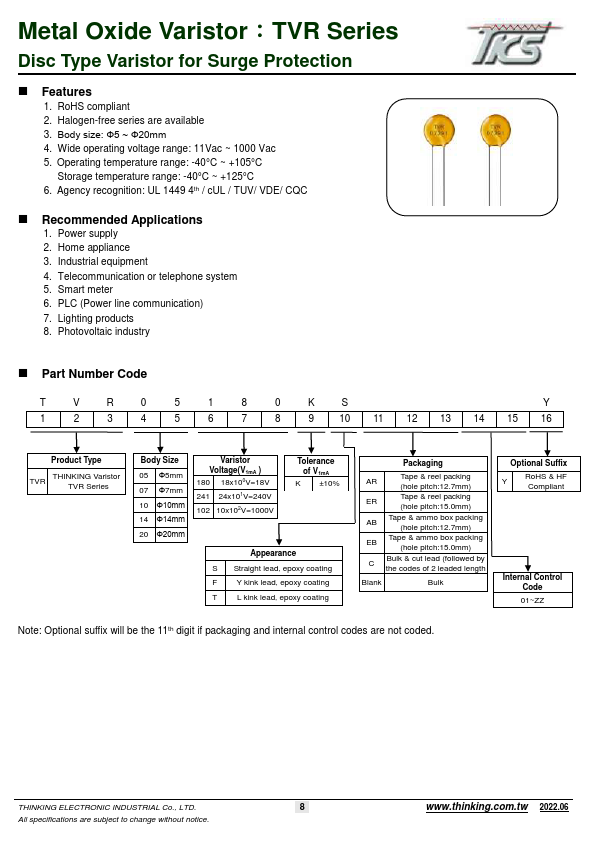

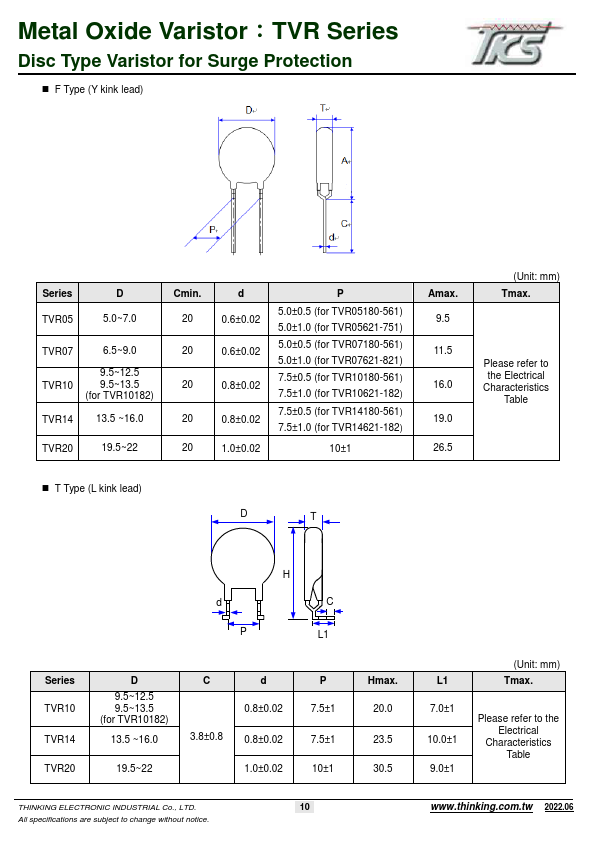

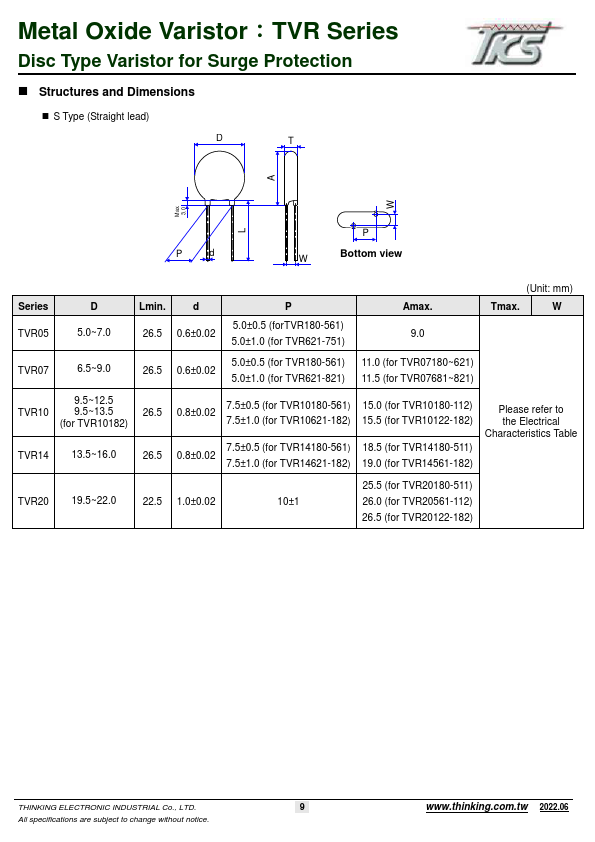

Additional preview pages of the TVR10331 datasheet.

1. RoHS compliant 2. Halogen-free series are available 3. Body size: Ф5 ~ Ф20mm 4. Wide operating voltage range: 11Vac ~ 1000 Vac 5. Operating temperature range: -40°C ~ +105°C Storage temperature range: -40°C ~ +125°C 6. Agency recognition: UL 1449 4th / cUL / TUV/ VDE/ CQC.
