TVR25431KB - Zinc Oxide Varistor

This page provides the datasheet information for the TVR25431KB, a member of the TVR14431 Zinc Oxide Varistor family.

Product Overview

TKS

📥 Download Datasheet

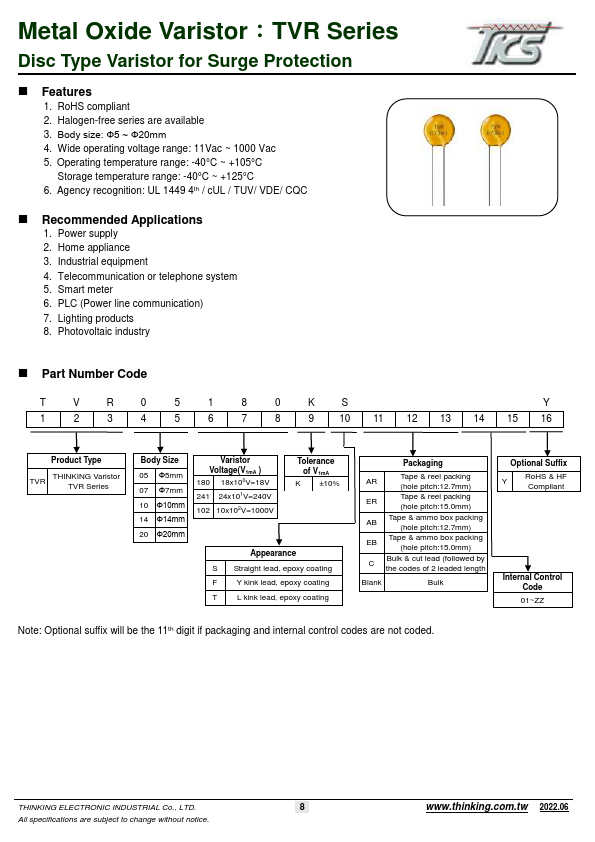

TVR25431KB Zinc Oxide Varistor by TKS - Datasheet Preview — Datasheet preview – TVR25431KB

Datasheet Details

Part number	TVR25431KB
Manufacturer	TKS
File Size	1.04 MB
Description	Zinc Oxide Varistor
Datasheet	TVR25431KB Datasheet
Additional preview pages of the TVR25431KB datasheet.

TVR25431KB Product details

Features

1. RoHS compliant 2. Halogen-free series are available 3. Body size: Ф5 ~ Ф20mm 4. Wide operating voltage range: 11Vac ~ 1000 Vac 5. Operating temperature range: -40°C ~ +105°C Storage temperature range: -40°C ~ +125°C 6. Agency recognition: UL 1449 4th / cUL / TUV/ VDE/ CQC.
Recommended.
