TMI7303B - 802.3af/at Power over Ethernet PoE Powered Device

Description

The TMI7303B provides a complete interface for a Powered Device (PD) with the IEEE 802.3af/at standard in PoE system.

The TMI7303B include detection signature, classification signature and an integrated isolation power switch with inrush current control mode.

Features

  • Meets IEEE 802.3af/at Specifications.
  • Support 25W PoE Power.

📥 Download Datasheet

Datasheet preview – TMI7303B

Datasheet Details

Part number TMI7303B
Manufacturer TOLL
File Size 1.01 MB
Description 802.3af/at Power over Ethernet PoE Powered Device
Datasheet download datasheet TMI7303B Datasheet

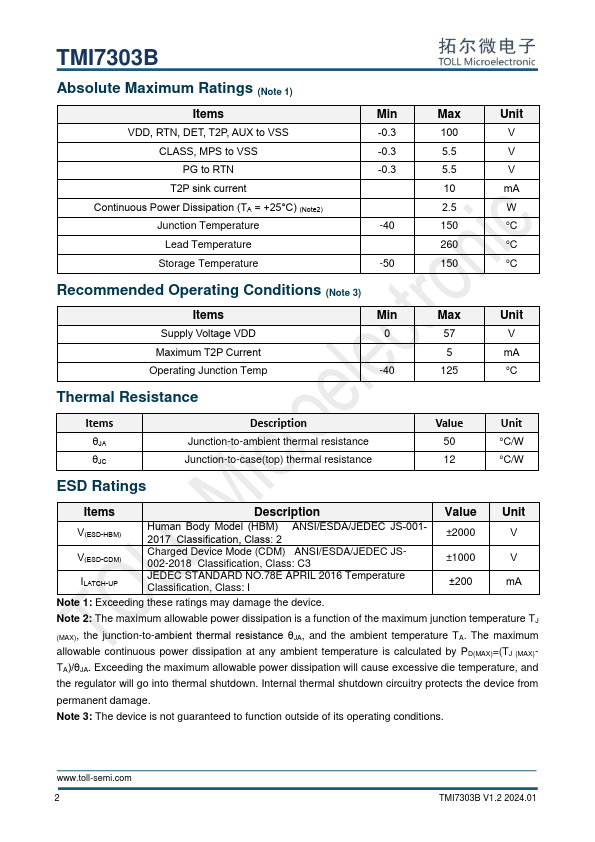

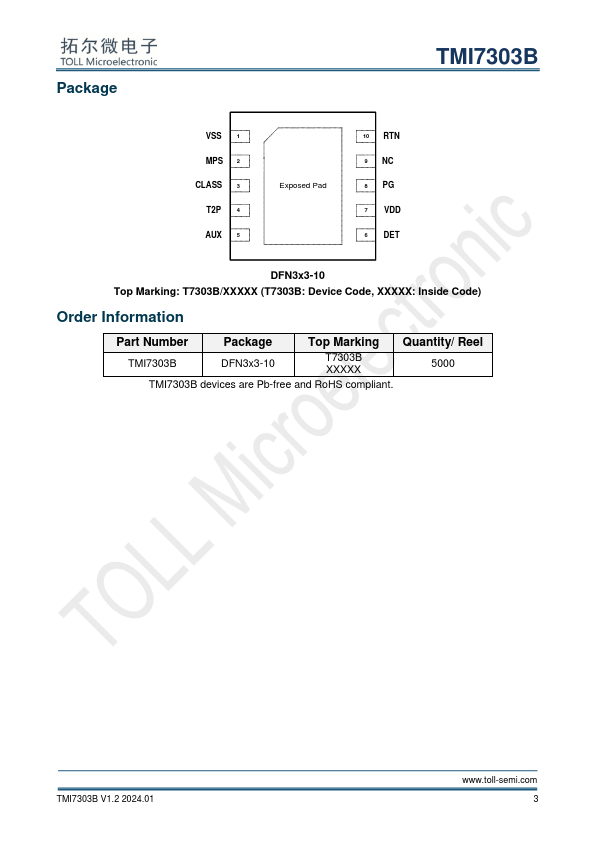

Additional preview pages of the TMI7303B datasheet.

📁 Similar Datasheet

  • TMI8037 - 500mA LNB-Power Supply & Control Voltage Regulator (TOLL Microelectronic)
  • TMI8122-Q1 - 1CH H-bridge Motor Driver (TOLL Microelectronic)
  • TMI8262 - Dual-Bridge Motor Controller (TOLL Microelectronic)
  • TMI8262Q - Dual-Bridge Motor Controller (TOLL Microelectronic)
  • TMI8721-Q1 - Automotive Single-Channel Smart Gate Driver (TOLL Microelectronic)
  • TMI8870 - 3.6-A Brushed DC Motor Driver (TOLL Microelectronic)
  • TMI8870B - 3.6-A Brushed DC Motor Driver (TOLL Microelectronic)
Other Datasheets by TOLL
  • TMI7321 - Microelectronic 13W 802.3af PoE Powered Device Interface
  • TMI7003 - 3-Channel DC/DC Step-Down PMU
  • TMI7003C - 1.5MHz DC/DC Step-Down PMU
  • TMI7608S - 8-Port IEEE 802.3af/at PSE Controller
  • TMI3108 - 1.5MHz 1A Synchronous Step-DownConverter
  • TMI31602H - 2A Synchronous Step-Down Converter
  • TMI3252 - 600kHz 18V 2A Synchronous COT Step-Down Converter
  • TMI3252S - 600kHz 18V 2A Synchronous COT Step-Down Converter

Full PDF Text Transcription

Click to expand full text

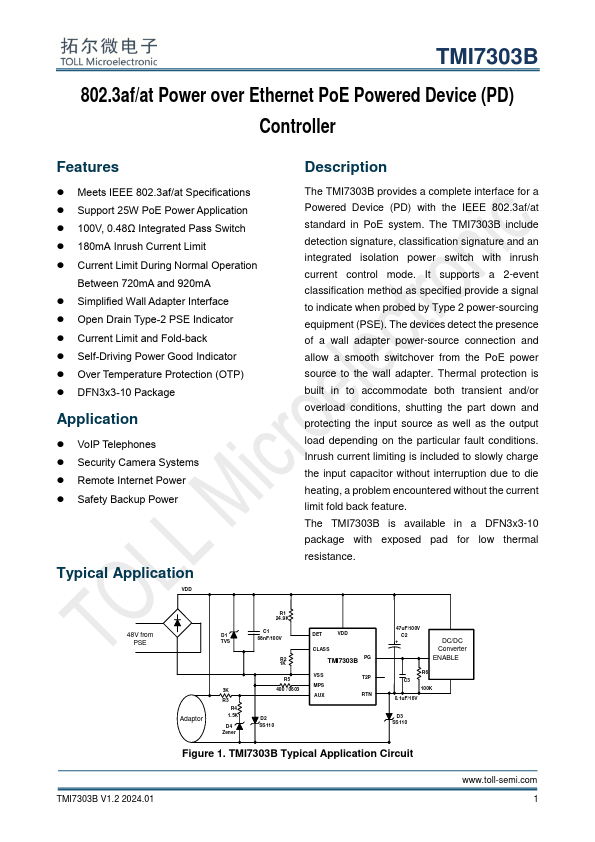

TMI7303B 802.3af/at Power over Ethernet PoE Powered Device (PD) Controller Features  Meets IEEE 802.3af/at Specifications  Support 25W PoE Power Application  100V, 0.48Ω Integrated Pass Switch  180mA Inrush Current Limit  Current Limit During Normal Operation Between 720mA and 920mA  Simplified Wall Adapter Interface  Open Drain Type-2 PSE Indicator  Current Limit and Fold-back  Self-Driving Power Good Indicator  Over Temperature Protection (OTP)  DFN3x3-10 Package Application  VoIP Telephones  Security Camera Systems  Remote Internet Power  Safety Backup Power Typical Application VDD Description The TMI7303B provides a complete interface for a Powered Device (PD) with the IEEE 802.3af/at standard in PoE system.
