TMI7321 - Microelectronic 13W 802.3af PoE Powered Device Interface

Description

The TMI7321 is an integrated IEEE 802.3af PoE compliant Powered Device (PD) power supply solution.

It includes a PD interface and an isolated/non-isolated fly-back or Buck converter.

Features

  • Compatible with 802.3af Specifications.
  • Support 13W PoE Power.

📥 Download Datasheet

Datasheet preview – TMI7321

Datasheet Details

Part number TMI7321
Manufacturer TOLL
File Size 1.07 MB
Description Microelectronic 13W 802.3af PoE Powered Device Interface
Datasheet download datasheet TMI7321 Datasheet

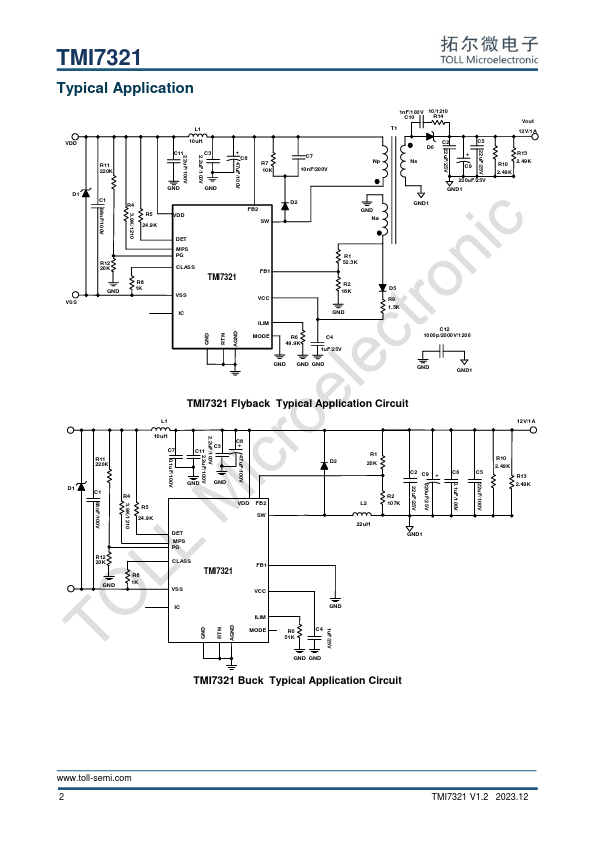

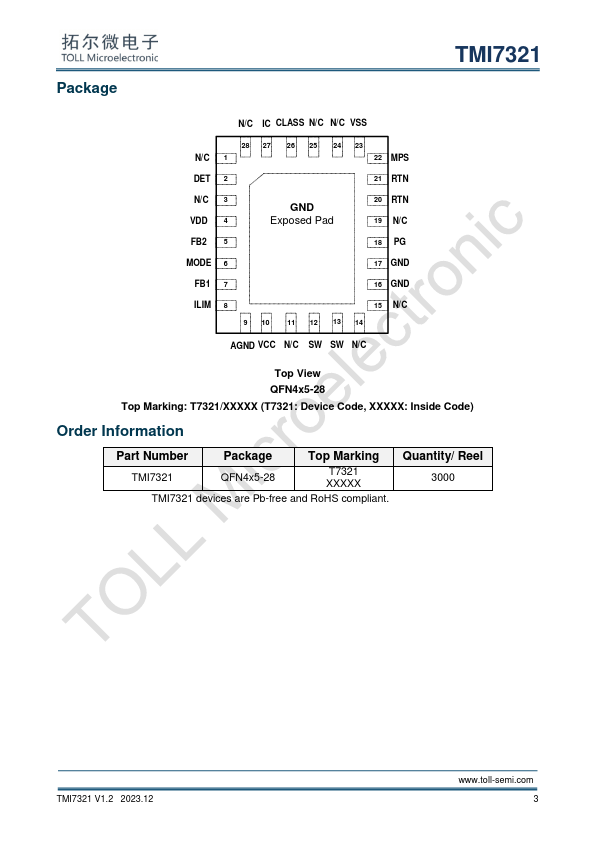

Additional preview pages of the TMI7321 datasheet.

📁 Similar Datasheet

  • TMI8037 - 500mA LNB-Power Supply & Control Voltage Regulator (TOLL Microelectronic)
  • TMI8122-Q1 - 1CH H-bridge Motor Driver (TOLL Microelectronic)
  • TMI8262 - Dual-Bridge Motor Controller (TOLL Microelectronic)
  • TMI8262Q - Dual-Bridge Motor Controller (TOLL Microelectronic)
  • TMI8721-Q1 - Automotive Single-Channel Smart Gate Driver (TOLL Microelectronic)
  • TMI8870 - 3.6-A Brushed DC Motor Driver (TOLL Microelectronic)
  • TMI8870B - 3.6-A Brushed DC Motor Driver (TOLL Microelectronic)
Other Datasheets by TOLL
  • TMI7303B - 802.3af/at Power over Ethernet PoE Powered Device
  • TMI7003 - 3-Channel DC/DC Step-Down PMU
  • TMI7003C - 1.5MHz DC/DC Step-Down PMU
  • TMI7608S - 8-Port IEEE 802.3af/at PSE Controller
  • TMI3108 - 1.5MHz 1A Synchronous Step-DownConverter
  • TMI31602H - 2A Synchronous Step-Down Converter
  • TMI3252 - 600kHz 18V 2A Synchronous COT Step-Down Converter
  • TMI3252S - 600kHz 18V 2A Synchronous COT Step-Down Converter

Full PDF Text Transcription

Click to expand full text

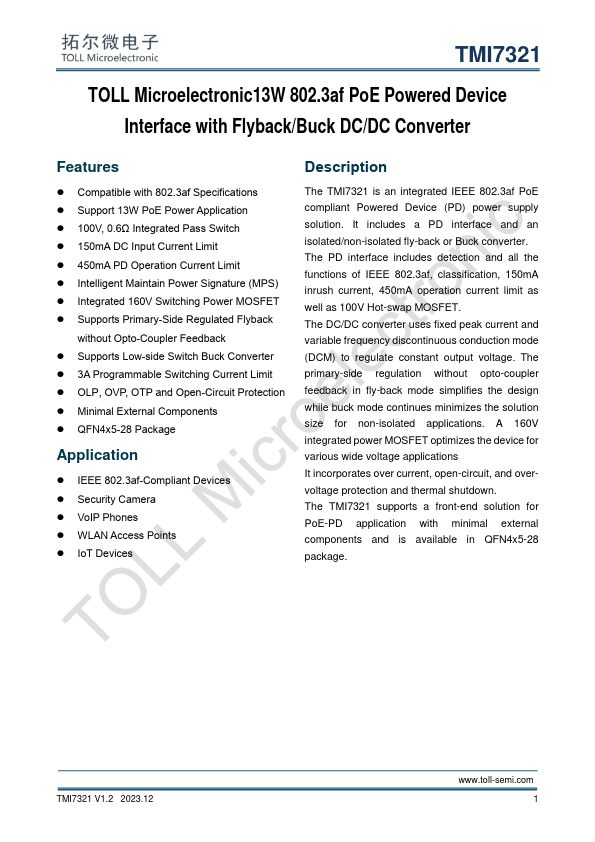

TMI7321 TOLL Microelectronic13W 802.3af PoE Powered Device Interface with Flyback/Buck DC/DC Converter Features  Compatible with 802.3af Specifications  Support 13W PoE Power Application  100V, 0.6Ω Integrated Pass Switch  150mA DC Input Current Limit  450mA PD Operation Current Limit  Intelligent Maintain Power Signature (MPS)  Integrated 160V Switching Power MOSFET  Supports Primary-Side Regulated Flyback without Opto-Coupler Feedback  Supports Low-side Switch Buck Converter  3A Programmable Switching Current Limit  OLP, OVP, OTP and Open-Circuit Protection  Minimal External Components  QFN4x5-28 Package Application  IEEE 802.3af-Compliant Devices  Security Camera  VoIP Phones  WLAN Access Points  IoT Devices Description The TMI7321 is an integrated IEEE 802.
